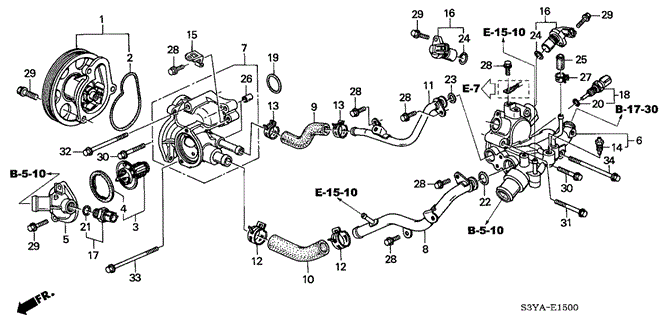

ENGINE/WATER PUMP - SENSOR for 2006 Honda INSIGHT

Select WATER PUMP - SENSOR Part

2006 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 19210-PHM-010 19210-PHM-010 / Water Pump Set

$149.02 $103.72
2 19222-PHM-J01 19222-PHM-J01 / Gasket, Water Pump

$3.47
3 19301-PHM-305 19301-PHM-305 / Thermostat Assembly

THERMOSTAT ASSY.

$32.03 $22.68
4 19305-PT0-000 19305-PT0-000 / Rubber, Thermostat Mounting

$4.18
5 19311-PHM-000 19311-PHM-000 / Cover, Thermostat

$17.93 $14.34
6 19315-PHM-010 19315-PHM-010 / Cover, Water Outlet

$227.33 $158.22
7 19320-PHM-000 19320-PHM-000 / Case, Thermostat

$101.90 $72.15
8 19503-PHM-000 19503-PHM-000 / Pipe, Heater

$47.53 $33.65
9 19508-PHM-000 19508-PHM-000 / Hose, Bypass Outlet

$7.97 $7.17
10 19509-PHM-000 19509-PHM-000 / Hose, Water Inlet

$6.40
11 19510-PHM-000 19510-PHM-000 / Pipe, Bypass

$43.30 $30.66
12 19511-PV1-A01 19511-PV1-A01 / Clip, Water Hose

$5.32
13 19512-PC6-003 19512-PC6-003 / Clip, Hose (18.7MM)

$6.42
14 19516-PC1-000 19516-PC1-000 / Bolt, Breathing Water

$13.72 $10.98
15 32749-PHM-010 32749-PHM-010 / Stay K, Engine Wire Harness

$3.77
16 37510-PCX-003 37510-PCX-003 / Sensor Assembly, Tdc

SENSOR ASSY., TDC

$102.95 $72.89
17 37760-P00-003 37760-P00-003 / Switch Assembly, Thermo (A-93) (Nippon Thermostat)

SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT)

$60.92 $43.13
18 37870-PK2-015 37870-PK2-015 / Sensor Assembly, Water Temperature (Hadsys)

SENSOR ASSY., WATER TEMPERATURE (HADSYS)

$47.85 $33.88
19 91304-PHM-003 91304-PHM-003 / O-Ring (32.8X3.1)

$5.80
20 91307-PK2-005 91307-PK2-005 / O-Ring (9.5X1.5) (Honda Kikaki)

$1.68
21 91307-PN3-000 91307-PN3-000 / O-Ring (17.8X1.4)

$1.80
22 91315-PHM-003 91315-PHM-003 / O-Ring (19.6X3.8)

$3.52
23 91316-PHM-003 91316-PHM-003 / O-Ring (13.6X3.8)

$3.52
24 91333-PCX-003 91333-PCX-003 / O-Ring

$1.88
25 91657-SD5-000 91657-SD5-000 / Cap, Sealing (7.3MM)

$3.78
26 94301-08100 94301-08100 / Pin, Dowel (8X10)

$1.28
27 95002-41250-04 95002-41250-04 / Clamp, Tube (D12.5)

$1.60
28 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.17
29 95701-06020-08 95701-06020-08 / Bolt, Flange (6X20)

$0.28
30 95701-06035-08 95701-06035-08 / Bolt, Flange (6X35)

$1.22
31 95701-06045-08 95701-06045-08 / Bolt, Flange (6X45)

$1.43
32 95701-06070-08 95701-06070-08 / Bolt, Flange (6X70)

$1.53
33 95701-06085-08 95701-06085-08 / Bolt, Flange (6X85)

$1.87
34 95701-06090-08 95701-06090-08 / Bolt, Flange (6X90)

$1.93
