Electrical/Exhaust/Heater/Fuel/Fuel Tank (2) for 2006 Honda INSIGHT

Select Fuel Tank (2) Part

2006 Honda INSIGHT

Change vehicle

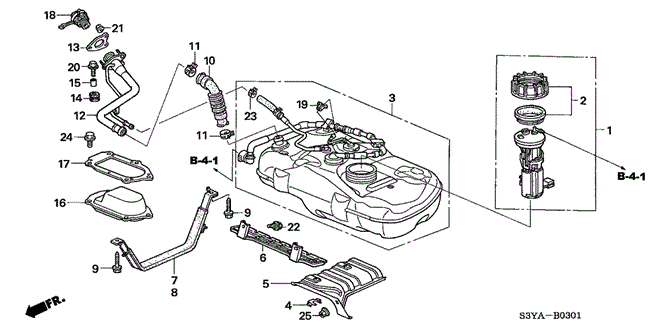

Electrical/Exhaust/Heater/Fuel/Fuel Tank (2) for 2006 Honda INSIGHT #1
No. Part # Part # / Description List Price Price
1 17045-S3Y-A50 17045-S3Y-A50 / Module Assembly, Fuel Pump

MODULE ASSY., FUEL PUMP

$347.95 $238.00
2 17046-SHJ-A00 17046-SHJ-A00 / Nut & Gasket Set, Fuel Lock

$67.12 $47.52
3 17500-S3Y-A51 17500-S3Y-A51 / Tank, Fuel

$420.72 $287.77
4 17513-S3Y-003 17513-S3Y-003 / Circlip, Protector

$3.65
5 17519-S3Y-000 17519-S3Y-000 / Protector, Fuel Tank

$40.67 $28.79
6 17520-S3Y-A00 17520-S3Y-A00 / Reflector, Fuel Tank

$37.22 $26.35
7 17521-S3Y-000 17521-S3Y-000 / Band, R Fuel Tank Mounting

BAND, R. FUEL TANK MOUNTING

$36.15 $25.59
8 17522-S3Y-000 17522-S3Y-000 / Band, L Fuel Tank Mounting

BAND, L. FUEL TANK MOUNTING

$36.15 $25.59
9 17525-SM4-000 17525-SM4-000 / Bolt-Washer (10X35)

$3.70
10 17651-S3Y-A51 17651-S3Y-A51 / Tube, Filler Neck

$45.12 $31.94
11 17652-SDA-A31 17652-SDA-A31 / Clip, Filler Tube

$4.17
12 17660-S3Y-A50 17660-S3Y-A50 / Pipe, Fuel Filler

$111.18 $78.72
13 17662-SS1-010 17662-SS1-010 / Gasket, Fuel Filler Pipe

$6.30
14 17664-SH4-010 17664-SH4-010 / Bush, Filler Pipe Mount

$3.77
15 17665-SK7-010 17665-SK7-010 / Collar, Filler Pipe Mount

$4.67
16 17667-S3Y-010 17667-S3Y-010 / Grommet, Fuel Filler Pipe

$31.35 $22.20
17 17668-S3Y-000 17668-S3Y-000 / Holder, Fuel Filler Pipe Grommet

$13.12 $10.50
18 17670-SDC-L01 17670-SDC-L01 / Cap, Fuel Filler

$39.93 $28.27
19 17711-S0X-931 17711-S0X-931 / Retainer (Blue Green) (Tokai)

$2.43
20 90011-SK7-010 90011-SK7-010 / Bolt, Filler Pipe Mounting

$3.05
21 90103-SB0-010 90103-SB0-010 / Nut, Flange (5MM)

$2.95
22 90671-SB2-003 90671-SB2-003 / Bolt, Front Fender

BOLT, FR. FENDER

$6.05
23 90700-SDA-003 90700-SDA-003 / Clamp, Fuel Tube (D17.0)

$4.42
24 93405-06016-05 93405-06016-05 / Bolt-Washer (6X16)

$1.22
25 94071-06050 94071-06050 / Nut-Washer (6MM)

- -
