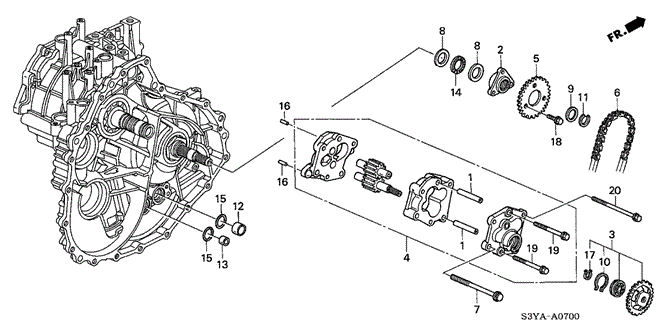

TRANSMISSION - AUTOMATIC/AT OIL PUMP for 2005 Honda INSIGHT

Select AT OIL PUMP Part

2005 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 22749-PW4-000 22749-PW4-000 / Pipe (35MM)

$3.12
2 23954-PHT-000 23954-PHT-000 / Hub, Driven Sprocket

$30.98 $21.94
3 25010-P4V-305 25010-P4V-305 / Sprocket, Oil Pump Driven

$31.87 $22.56
4 25100-PHT-315 25100-PHT-315 / Pump Assembly, Oil

PUMP ASSY., OIL

$245.28 $170.72
5 25161-P4V-000 25161-P4V-000 / Sprocket, Oil Pump Drive

$14.42 $11.54
6 25165-PLY-003 25165-PLY-003 / Chain, Oil Pump Drive

$24.43 $19.54
7 90002-P4V-000 90002-P4V-000 / Bolt (8X60)

$5.73
8 90402-PLY-000 90402-PLY-000 / Washer, Thrust (22X35X1.5)

$3.88
9 90577-P4V-000 90577-P4V-000 / Shim G (22X28) (2.15)

$7.20 $6.48
9 90575-P4V-000 90575-P4V-000 / Shim E (22X28) (1.65)

$7.20 $6.48
9 90574-P4V-000 90574-P4V-000 / Shim D (22X28) (1.40)

$7.20 $6.48
9 90576-P4V-000 90576-P4V-000 / Shim F (22X28) (1.90)

$7.20 $6.48
9 90573-P4V-000 90573-P4V-000 / Shim C (22X28) (1.15)

$7.17 $6.45
9 90578-P4V-000 90578-P4V-000 / Shim H (22X28) (2.40)

$7.20 $6.48
10 90607-P4V-000 90607-P4V-000 / Circlip (Outer) (24MM)

$2.72
11 90609-P4V-000 90609-P4V-000 / Circlip (Outer) (22MM)

$2.72
12 90703-P4V-000 90703-P4V-000 / Pin, Dowel (22X10)

$3.73
13 90704-P4V-000 90704-P4V-000 / Pin, Dowel (18X10)

$3.73
14 91131-PLY-005 91131-PLY-005 / Bearing, Thrust Needle (22X36X2)

$7.78 $7.00
15 91327-P4V-003 91327-P4V-003 / O-Ring (20.7X2.4)

$2.90
16 94303-06100 94303-06100 / Pin, Dowel (6X10)

$1.30
17 94510-12000 94510-12000 / Circlip, Outer (12MM)

CIRCLIP (OUTER) (12MM)

$1.20
18 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.07
19 95701-06045-08 95701-06045-08 / Bolt, Flange (6X45)

$1.30
20 95701-06060-08 95701-06060-08 / Bolt, Flange (6X60)

$1.30
