ELECTRICAL / EXHAUST / HEATER / FUEL/FRONT WINDSHIELD WIPER for 2005 Honda INSIGHT

Select FRONT WINDSHIELD WIPER Part

2005 Honda INSIGHT

Change vehicle

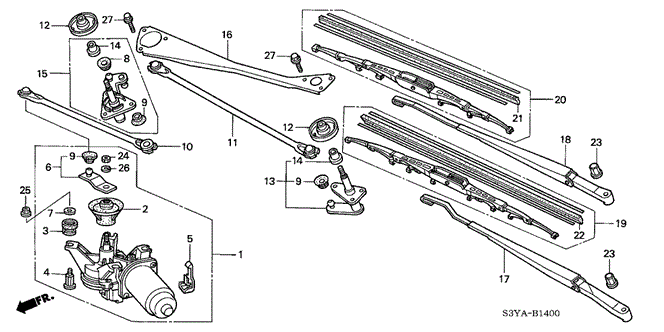

No. Part # Part # / Description List Price Price
1 76505-S3Y-A01 76505-S3Y-A01 / Motor, Front Wiper

MOTOR, FR. WIPER

$310.83 $212.61
2 76515-S50-003 76515-S50-003 / Seal A

$6.12
3 76516-S3Y-003 76516-S3Y-003 / Rubber, Mounting

$4.28
4 76517-S3Y-003 76517-S3Y-003 / Bolt C

$4.80
5 76518-S3Y-003 76518-S3Y-003 / Cover, Breather

$3.23
6 76520-S2G-003 76520-S2G-003 / Link A Assembly

LINK A ASSY.

$12.95 $10.36
7 76521-S3Y-003 76521-S3Y-003 / Plate, Washer (Bracket Less)

$2.75
8 76524-SD4-003 76524-SD4-003 / Dust Seal

$4.40
9 76524-SE0-013 76524-SE0-013 / Dust Seal

$5.17
10 76540-S3Y-A01 76540-S3Y-A01 / Rod Unit A

$19.10 $15.28
11 76550-S3Y-A01 76550-S3Y-A01 / Rod Unit B

$19.10 $15.28
12 76558-S2H-003 76558-S2H-003 / Cap, Pivot

$2.57
13 76560-S3Y-A01 76560-S3Y-A01 / Pivot Assembly C

PIVOT ASSY. C

$27.48 $19.46
14 76561-S2H-003 76561-S2H-003 / Cap B, Pivot

$6.12
15 76570-S3Y-A01 76570-S3Y-A01 / Pivot Assembly B

PIVOT ASSY. B

$27.48 $19.46
16 76580-S3Y-A01 76580-S3Y-A01 / Frame, Channel

$24.18 $19.34
17 76600-S3Y-A02 76600-S3Y-A02 / Arm, Windshield Wiper (Driver Side)

$56.50 $40.00
18 76610-S3Y-A02 76610-S3Y-A02 / Arm, Windshield Wiper (Passenger Side)

$58.75 $41.60
19 76620-S3Y-A02 76620-S3Y-A02 / Blade, Windshield Wiper (550MM)

$17.95 $14.36
20 76630-S5D-A02 76630-S5D-A02 / Blade, Windshield Wiper (475MM)

$14.95 $11.96
21 76632-S5A-003 76632-S5A-003 / Rubber, Blade (475MM)

$6.08
22 76622-SCC-003 76622-SCC-003 / Rubber, Blade (550MM)

$6.08
23 90201-SK7-000 90201-SK7-000 / Nut, Hex Cap (10MM)

NUT, HEX. CAP (10MM)

$8.32 $7.49
24 94002-08000-0S 94002-08000-0S / Nut, Hex (8MM)

NUT, HEX. (8MM)

$0.77
25 94071-06050 94071-06050 / Nut-Washer (6MM)

- -
26 94111-08800 94111-08800 / Washer, Spring (8MM)

$0.57
27 95701-06016-04 95701-06016-04 / Bolt, Flange (6X16)

$0.95
