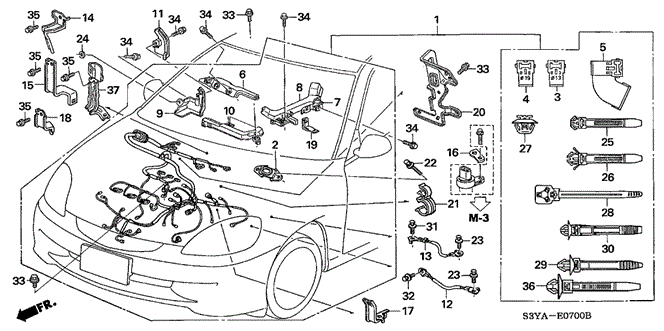

ENGINE/ENGINE WIRE HARNESS for 2004 Honda INSIGHT

Select ENGINE WIRE HARNESS Part

2004 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 32110-PHM-A11 32110-PHM-A11 / Wire Harness, Engine

$1,162.80 $781.40
2 32111-PHM-003 32111-PHM-003 / Plate, Wire Harness Grommet (Black)

$8.70 $7.83
3 32116-P64-003 32116-P64-003 / Holder, Corrugated (13MM) (Dark Green)

$5.17
5 32119-P8E-A01 32119-P8E-A01 / Holder, Corrugated Tube (22MM)(Black)

$6.90
6 32127-PHM-000 32127-PHM-000 / Holder, Engine Harness

$9.17 $8.25
7 32128-PHM-000 32128-PHM-000 / Holder, Engine Wire Harness (Lower) (B)

$9.17 $8.25
8 32129-PHM-000 32129-PHM-000 / Holder, Engine Wire Harness (Upper)

$9.17 $8.25
9 32130-PHM-000 32130-PHM-000 / Cover, Crank Sensor

$6.47
10 32131-PHM-000 32131-PHM-000 / Holder, Engine Harness (C)

$9.17 $8.25
11 32132-PHM-A00 32132-PHM-A00 / Plate, Crank Sensor Cover

$6.77
12 32601-S3Y-J00 32601-S3Y-J00 / Cable Assembly, Transmission Ground

CABLE ASSY., TRANSMISSION GROUND

$10.17 $8.14
13 32610-S3Y-000 32610-S3Y-000 / Cable Assembly, Sub-Ground

CABLE ASSY., SUB-GROUND

$10.17 $8.14
14 32740-PHM-A00 32740-PHM-A00 / Stay A, Engine Wire Harness

$8.72 $7.85
15 32741-PHM-A00 32741-PHM-A00 / Stay B, Engine Wire Harness

- -
16 32745-PHM-000 32745-PHM-000 / Stay F, Engine Wire Harness

$5.97
17 32747-PHM-000 32747-PHM-000 / Stay H, Engine Wire Harness

$7.25 $6.53
18 32750-PHM-000 32750-PHM-000 / Stay L, Engine Wire Harness

$5.00
19 32752-PHM-000 32752-PHM-000 / Stay, Joint Connector

$4.58
20 32753-PHM-A00 32753-PHM-A00 / Stay N, Engine Wire Harness

$14.67 $11.74
21 36020-P36-003 36020-P36-003 / Clamp, Breather Hose

$2.63
22 90149-SE0-902 90149-SE0-902 / Bolt, Ground (6X24) (Sn)

$4.40
31 90153-SE0-003 90153-SE0-003 / Bolt, Ground (6X12)

$0.53
24 90414-PHM-010 90414-PHM-010 / Washer, Special (6MM)

$2.25
25 91506-P01-003 91506-P01-003 / Clip A, Harness Band (129.4MM)(Dark Gray)

$4.48
26 91507-P01-003 91507-P01-003 / Clip B, Harness Band (129.4MM)(Dark Brown)

$4.25
27 91533-S04-003 91533-S04-003 / Clip, Connector (Natural)

$2.43
28 91547-SH3-003 91547-SH3-003 / Clip, Band (160MM) (Natural)

$1.75
30 91558-ST5-003 91558-ST5-003 / Clip, Harness Band (135MM) (Natural)

CLIP, HARNESS BAND

$4.48
32 92101-06012-0H 92101-06012-0H / Bolt, Hex (6X12)

BOLT, HEX. (6X12)

$0.90
33 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.17
34 95701-06016-08 95701-06016-08 / Bolt, Flange (6X16)

$1.05
35 95701-06012-05 95701-06012-05 / Bolt, Flange (6X12)

$1.05
