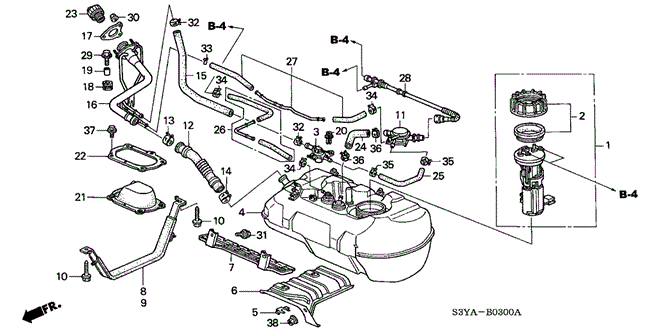

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (1) for 2004 Honda INSIGHT

Select FUEL TANK (1) Part

2004 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 17045-S3Y-A00 17045-S3Y-A00 / Module Assembly, Fuel Pump

MODULE ASSY., FUEL PUMP

$344.50 $235.64
2 17046-S5A-A00 17046-S5A-A00 / Nut & Gasket Set, Fuel Lock (Yachiyo)

$58.58 $41.48
3 17376-S84-A02 17376-S84-A02 / Valve, One-Way

$16.47 $13.18
4 17500-S3Y-505 17500-S3Y-505 / Tank, Fuel

$371.78 $254.30
5 17513-S3Y-003 17513-S3Y-003 / Circlip, Protector

$3.62
6 17519-S3Y-000 17519-S3Y-000 / Protector, Fuel Tank

$40.27 $28.51
7 17520-S3Y-A00 17520-S3Y-A00 / Reflector, Fuel Tank

$33.33 $23.60
8 17521-S3Y-000 17521-S3Y-000 / Band, R Fuel Tank Mounting

BAND, R. FUEL TANK MOUNTING

$35.80 $25.35
9 17522-S3Y-000 17522-S3Y-000 / Band, L Fuel Tank Mounting

BAND, L. FUEL TANK MOUNTING

$35.80 $25.35
10 17525-SM4-000 17525-SM4-000 / Bolt-Washer (10X35)

$3.32
11 17551-S3Y-A02 17551-S3Y-A02 / Valve, Vent Shut (Orvr)

$122.88 $87.00
12 17651-S3Y-003 17651-S3Y-003 / Tube, Filler Neck

$49.25 $34.87
13 17652-SDA-A31 17652-SDA-A31 / Clip, Filler Tube

$3.93
14 17652-SEB-003 17652-SEB-003 / Clip, Filler Tube

$4.55
15 17658-S3Y-A00 17658-S3Y-A00 / Tube, Breather

$34.70 $24.57
16 17660-S3Y-A01 17660-S3Y-A01 / Pipe, Fuel Filler

$123.17 $87.20
17 17662-SS1-010 17662-SS1-010 / Gasket, Fuel Filler Pipe

$6.23
18 17664-SH4-010 17664-SH4-010 / Bush, Filler Pipe Mount

$3.73
19 17665-SK7-010 17665-SK7-010 / Collar, Filler Pipe Mount

$4.62
20 17665-S3Y-003 17665-S3Y-003 / Rivet, One-Way Valve

$4.87
21 17667-S3Y-A01 17667-S3Y-A01 / Grommet, Fuel Filler Pipe

$55.27 $39.13
22 17668-S3Y-000 17668-S3Y-000 / Holder, Fuel Filler Pipe Grommet

$12.99 $10.39
23 17670-S5A-A32 17670-S5A-A32 / Cap, Fuel Filler (Toyoda)

$39.33 $27.85
24 17701-S3Y-A00 17701-S3Y-A00 / Tube A

$13.43 $10.74
25 17702-S3Y-A01 17702-S3Y-A01 / Tube, Vent Return

$18.15 $14.52
26 17710-S3Y-A02 17710-S3Y-A02 / Tube, Vent

$13.95 $11.16
27 17721-S3Y-A01 17721-S3Y-A01 / Tube, Signal

$18.65 $14.92
28 17725-S3Y-A01 17725-S3Y-A01 / Tube, Fuel Vent (Orvr)

$74.02 $52.40
29 90011-SK7-010 90011-SK7-010 / Bolt, Filler Pipe Mounting

$2.73
30 90103-SB0-010 90103-SB0-010 / Nut, Flange (5MM)

$2.63
31 90671-SB2-003 90671-SB2-003 / Bolt, Front Fender

BOLT, FR. FENDER

$5.42
32 90700-SDA-003 90700-SDA-003 / Clamp, Fuel Tube (D17.0)

$4.08
33 91401-SDC-000 91401-SDC-000 / Clip, Tube (B10)

$1.47
34 91404-SDC-000 91404-SDC-000 / Clamp, Tube (D10)

$2.28
35 91408-SDB-000 91408-SDB-000 / Clamp, Tube (D13.0)

$2.35
36 91417-SZ3-003 91417-SZ3-003 / Clamp, Fuel Tube (D20) (Chuo Hatsujo)

$4.80
37 93405-06016-05 93405-06016-05 / Bolt-Washer (6X16)

$1.08
38 94071-06050 94071-06050 / Nut-Washer (6MM)

- -
