Chassis/Pedal for 2004 Honda INSIGHT

Select Pedal Part

2004 Honda INSIGHT

Change vehicle

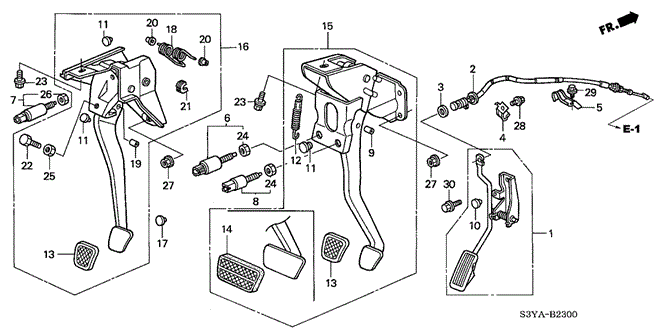

Chassis/Pedal for 2004 Honda INSIGHT #1
No. Part # Part # / Description List Price Price
1 17800-S3Y-A02 17800-S3Y-A02 / Pedal, Accelerator

$43.02 $30.46
2 17910-S3Y-A02 17910-S3Y-A02 / Wire, Throttle

$25.30 $17.91
3 17921-SA4-730 17921-SA4-730 / Seal, Throttle Cable

$6.75
4 17931-S3Y-A00 17931-S3Y-A00 / Clamp B, Throttle Wire

$7.17 $6.45
5 17932-S3Y-000 17932-S3Y-000 / Clamp C, Throttle Wire

$7.17 $6.45
6 35350-SE0-013 35350-SE0-013 / Switch Assembly, Stop (Tec)

SWITCH ASSY., STOP (TEC)

$25.00 $20.00
7 35710-SE3-A01 35710-SE3-A01 / Switch Assembly, Clutch (Inhibiter)

SWITCH ASSY., CLUTCH (INHIBITER)

$56.25 $39.83
9 46504-S3Y-003 46504-S3Y-003 / Bush

$2.72
10 46505-SA7-000 46505-SA7-000 / Pad, Pedal Stopper

$5.00
11 46505-S3Y-003 46505-S3Y-003 / Pad, Pedal Stopper

$3.50
12 46530-S3Y-N00 46530-S3Y-N00 / Spring Assembly, Pedal Return

SPRING ASSY., PEDAL RETURN

$3.92
13 46545-S3Y-003 46545-S3Y-003 / Cover, Pedal

$6.05
15 46600-S3Y-N01 46600-S3Y-N01 / Pedal Assembly, Brake

PEDAL ASSY., BRAKE

$159.58 $111.07
16 46900-S3Y-N51 46900-S3Y-N51 / Pedal Assembly, Clutch

PEDAL ASSY., CLUTCH

$159.58 $111.07
17 46905-SK7-000 46905-SK7-000 / Stopper, Clutch Pedal

$8.58 $7.72
18 46907-S3Y-003 46907-S3Y-003 / Spring, Clutch Assistant

$5.50
19 46911-S3Y-003 46911-S3Y-003 / Bush, Pedal Pin

$2.97
20 46981-S2A-003 46981-S2A-003 / Bush A, Clutch Assistant

$3.48
21 46982-S3Y-003 46982-S3Y-003 / Bush B, Clutch Assistant

$3.25
22 92201-10030-0H 92201-10030-0H / Bolt, Hex (10x30)

BOLT, HEX. (10X30)

$1.63
23 93405-08020-08 93405-08020-08 / Bolt-Washer (8X20)

$1.37
24 94001-10080-0S 94001-10080-0S / Nut, Hex (10MM)

NUT, HEX. (10MM)

$0.97
25 94002-10000-0S 94002-10000-0S / Nut, Hex (10MM)

NUT, HEX. (10MM)

$1.70
26 94002-12080-0S 94002-12080-0S / Nut, Hex (12MM)

NUT, HEX. (12MM)

$1.11
27 94070-08080 94070-08080 / Nut-Washer (8MM)

$0.97
28 95701-06012-05 95701-06012-05 / Bolt, Flange (6X12)

$1.07
29 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.18
30 95701-08020-08 95701-08020-08 / Bolt, Flange (8X20)

$1.07
