Engine/Cylinder Block - Oil Pan for 2002 Honda INSIGHT

Select Cylinder Block - Oil Pan Part

2002 Honda INSIGHT

Change vehicle

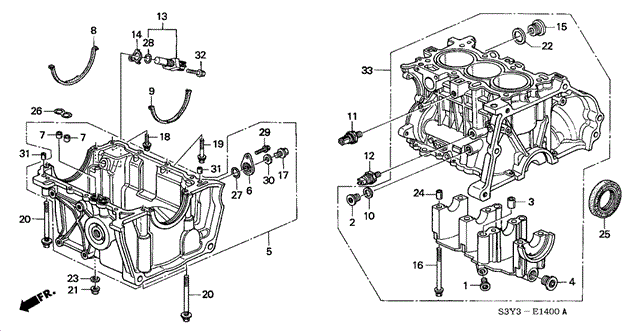

Engine/Cylinder Block - Oil Pan for 2002 Honda INSIGHT #1
No. Part # Part # / Description List Price Price
1 11106-PE0-300 11106-PE0-300 / Bolt, Sealing (14MM)

$3.47
2 11106-PT0-300 11106-PT0-300 / Bolt, Sealing (16MM)

$7.85 $7.07
3 11126-PHM-300 11126-PHM-300 / Pin, Dowel (16X20)

$2.65
4 11126-PK1-003 11126-PK1-003 / Bolt, Sealing (22MM)

$4.62
5 11200-PHM-000 11200-PHM-000 / Pan, Oil

$482.28 $329.88
6 11202-PHM-310 11202-PHM-310 / Base, Oil Pan Drain

$17.32 $13.86
7 11203-PHM-300 11203-PHM-300 / Collar, Oil Pan

$3.25
8 11251-PHM-000 11251-PHM-000 / Gasket A, Oil Pan

$7.97 $7.17
9 11252-PHM-000 11252-PHM-000 / Gasket B, Oil Pan

$7.97 $7.17
10 12207-PC6-300 12207-PC6-300 / Washer, Sealing (16MM)

$4.02
11 30530-PHM-003 30530-PHM-003 / Sensor Assembly, Knock

SENSOR ASSY., KNOCK

$157.45 $109.59
12 37240-PHM-003 37240-PHM-003 / Switch Assembly, Oil Pressure

SWITCH ASSY., OIL PRESSURE

$31.25 $22.13
13 37500-PHM-003 37500-PHM-003 / Sensor Assembly, Crank

SENSOR ASSY., CRANK

$81.67 $57.82
14 37501-PHM-000 37501-PHM-000 / Spacer, Crank Sensor

$8.58 $7.72
15 90001-PHM-000 90001-PHM-000 / Bolt, Drain Plug (28MM)

$11.18 $8.94
16 90007-PHM-003 90007-PHM-003 / Bolt-Washer (9X113)

$6.53
17 90013-PHM-000 90013-PHM-000 / Bolt, Drain Plug (14MM)

$5.52
18 90031-PHM-000 90031-PHM-000 / Bolt-Washer, Special (6X22)

$3.02
19 90032-PHM-000 90032-PHM-000 / Bolt-Washer, Special (6X35)

$3.02
20 90033-PHM-000 90033-PHM-000 / Bolt-Washer, Special (8X84)

$5.37
21 90202-PHM-000 90202-PHM-000 / Nut, Flange Special (8MM)

$5.50
22 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.82
23 90415-PHM-000 90415-PHM-000 / Washer, Special (8MM)

$2.28
24 90702-PE0-000 90702-PE0-000 / Pin, Dowel (12X18)

$3.53
25 91214-PHM-013 91214-PHM-013 / Oil Seal (65X88X10)

$27.83 $19.71
26 91307-PHM-003 91307-PHM-003 / O-Ring, Oil Pan

$4.68
27 91308-PA9-003 91308-PA9-003 / O-Ring (19.8X1.9) (Arai)

$3.08
28 91333-PCX-003 91333-PCX-003 / O-Ring

$1.88
29 93401-05012-08 93401-05012-08 / Bolt-Washer (5X12)

$1.05
30 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.47
31 94301-08100 94301-08100 / Pin, Dowel (8X10)

$1.28
32 95701-06025-08 95701-06025-08 / Bolt, Flange (6X25)

$1.17
33 11000-PHM-810 11000-PHM-810 / Block Assembly, Cylinder (DOT)

BLOCK ASSY., CYLINDER (DOT)

$1,897.15 $1,381.13
