Chassis/Rear Brake (Drum) for 2002 Honda INSIGHT

Select Rear Brake (Drum) Part

2002 Honda INSIGHT

Change vehicle

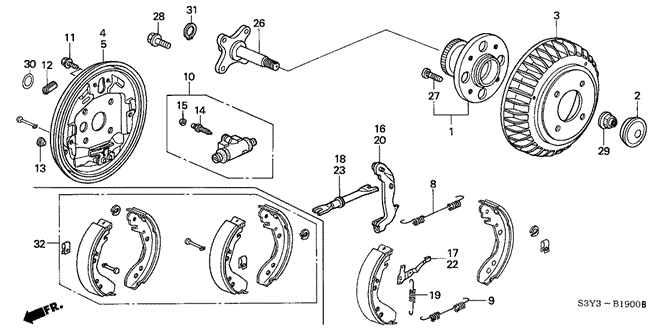

Chassis/Rear Brake (Drum) for 2002 Honda INSIGHT #1
No. Part # Part # / Description List Price Price
1 42200-S3Y-951 42200-S3Y-951 / Bearing Assembly, Rear Hub Unit

BEARING ASSY., RR. HUB UNIT

$256.72 $178.67
2 42326-SFA-000 42326-SFA-000 / Cap, Hub Unit

$6.08
3 42610-S3Y-000 42610-S3Y-000 / Drum, Rear Brake

DRUM, RR. BRAKE

$114.37 $80.97
4 43110-S3Y-952 43110-S3Y-952 / Plate, R Rear Brake Back

PLATE, R. RR. BRAKE BACK

$55.75 $39.47
5 43120-S3Y-952 43120-S3Y-952 / Plate, L Rear Brake Back

PLATE, L. RR. BRAKE BACK

$55.75 $39.47
8 43171-S3Y-003 43171-S3Y-003 / Spring A, Brake

$6.77
9 43172-S3Y-003 43172-S3Y-003 / Spring B, Brake

$5.80
10 43300-S3Y-003 43300-S3Y-003 / Cylinder Assembly, Rear Wheel

CYLINDER ASSY., RR. WHEEL

$58.33 $41.30
11 43305-ST5-004 43305-ST5-004 / Bolt, Flange (6MM)

$3.12
12 43345-S3Y-003 43345-S3Y-003 / Plug, Adjuster

$5.47
13 43346-S3Y-003 43346-S3Y-003 / Plug, Inspection

$4.97
14 43352-ST5-004 43352-ST5-004 / Screw, Bleeder

$4.57
15 43353-ST5-004 43353-ST5-004 / Cap, Bleeder Screw

$3.78
16 43361-S3Y-003 43361-S3Y-003 / Lever, R Parking Brake

LEVER, R. PARKING BRAKE

$16.92 $13.54
17 43366-S3Y-003 43366-S3Y-003 / Lever, R Adjuster

LEVER, R. ADJUSTER

$11.37 $9.10
18 43367-S3Y-023 43367-S3Y-023 / Adjuster Assembly, R

ADJUSTER ASSY., R.

$16.13 $12.90
19 43369-S3Y-003 43369-S3Y-003 / Spring, Adjuster

$4.30
20 43371-S3Y-003 43371-S3Y-003 / Lever, L Parking Brake

LEVER, L. PARKING BRAKE

$16.92 $13.54
22 43376-S3Y-003 43376-S3Y-003 / Lever, L Adjuster

LEVER, L. ADJUSTER

$11.37 $9.10
23 43377-S3Y-023 43377-S3Y-023 / Adjuster Assembly, L

ADJUSTER ASSY., L.

$16.13 $12.90
26 52200-S3Y-A00 52200-S3Y-A00 / Spindle, Rear Wheel

SPINDLE, RR. WHEEL

$102.83 $72.81
27 90113-SM1-005 90113-SM1-005 / Bolt, Wheel (Rocknel Fastener)

BOLT, WHEEL (SAGA)

$2.20
27 90113-SM1-005 90113-SM1-005 / Bolt, Wheel (Rocknel Fastener)

$2.20
27 90113-SM1-005 90113-SM1-005 / Bolt, Wheel (Rocknel Fastener)

BOLT, WHEEL (NAGOYA RASHI)

$2.20
28 90163-S3Y-000 90163-S3Y-000 / Bolt, Rear Spindle (12X24.5)

BOLT, RR. SPINDLE (12X24.5)

$3.02
29 90305-S50-003 90305-S50-003 / Nut, Spindle

$9.32 $8.39
30 90551-S3Y-003 90551-S3Y-003 / O-Ring (22.1X1.9)

$3.52
31 90681-S3Y-000 90681-S3Y-000 / Circlip (Outer) (25MM)

$1.80
32 43053-S3Y-951 43053-S3Y-951 / Shoe Set, Rear Brake

SHOE SET, RR. BRAKE

$66.42 $47.02
32 43053-S3Y-952 43053-S3Y-952 / Shoe Set, Rear Brake

SHOE SET, RR. BRAKE

$66.42 $47.02
32 43053-S3Y-950 43053-S3Y-950 / Shoe Set, Rear Brake

SHOE SET, RR. BRAKE

$66.42 $47.02
