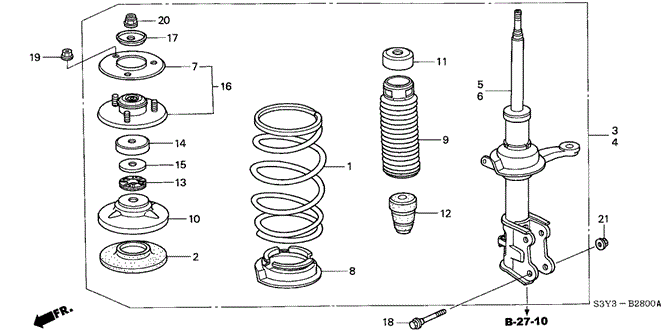

CHASSIS/FRONT SHOCK ABSORBER for 2002 Honda INSIGHT

Select FRONT SHOCK ABSORBER Part

2002 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 51401-S3Y-A11 51401-S3Y-A11 / Spring, Front

SPRING, FR.

$107.07 $75.80
2 51402-S3Y-003 51402-S3Y-003 / Rubber, Front Spring Mounting

RUBBER, FR. SPRING MOUNTING

$18.70 $14.96
3 51601-S3Y-A11 51601-S3Y-A11 / Shock Absorber Assembly, R Front

SHOCK ABSORBER ASSY., R. FR.

- -
4 51602-S3Y-A11 51602-S3Y-A11 / Shock Absorber Assembly, L Front

SHOCK ABSORBER ASSY., L. FR.

- -
5 51605-S3Y-J03 51605-S3Y-J03 / Shock Absorber Unit, R Front

SHOCK ABSORBER UNIT, R. FR.

$157.30 $109.48
6 51606-S3Y-J03 51606-S3Y-J03 / Shock Absorber Unit, L Front

SHOCK ABSORBER UNIT, L. FR.

$157.30 $109.48
7 51676-S3Y-003 51676-S3Y-003 / Plate, Front Fork Mount

PLATE, FR. FORK MOUNT

$11.12 $8.90
8 51684-S3Y-003 51684-S3Y-003 / Mount, Front Dust Cover (Lower)

MOUNT, FR. DUST COVER (LOWER)

$12.08 $9.66
9 51687-S3Y-003 51687-S3Y-003 / Cover, Front Sleeve Dust

COVER, FR. SLEEVE DUST

$19.38 $15.50
10 51688-S3Y-003 51688-S3Y-003 / Seat, Spring (Upper)

$14.55 $11.64
11 51689-S3Y-003 51689-S3Y-003 / Cover, Front End Dust

COVER, FR. END DUST

$8.93 $8.04
12 51722-S3Y-J02 51722-S3Y-J02 / Rubber, Front Bump Stop

RUBBER, FR. BUMP STOP

$18.27 $14.62
13 51726-S2G-004 51726-S2G-004 / Bearing, Shock Absorber Mounting

$30.07 $21.29
14 51727-S3Y-003 51727-S3Y-003 / Plate, Shock Absorber Bearing

$8.03 $7.23
15 51728-SD5-004 51728-SD5-004 / Plate, Thrust

$6.40
16 51920-S3Y-013 51920-S3Y-013 / Rubber, Front Fork Mounting

RUBBER, FR. FORK MOUNTING

$31.25 $22.13
17 51923-S3Y-003 51923-S3Y-003 / Washer, Front Fork Mounting

WASHER, FR. FORK MOUNTING

$6.56
18 90117-S3Y-000 90117-S3Y-000 / Bolt, Flange (14X70)

$6.83
18 90117-S3Y-900 90117-S3Y-900 / Bolt, Flange (14X70) (Service)

$7.08 $6.37
19 90182-SL0-004 90182-SL0-004 / Nut, Self-Lock (10MM)

$5.70
20 90213-SJ6-004 90213-SJ6-004 / Nut, Self-Lock (12MM) (Nylon)

$3.73
21 90213-S3Y-000 90213-S3Y-000 / Nut, Flange (14MM)

$2.75
