ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2002 Honda INSIGHT

Select FUEL PIPE Part

2002 Honda INSIGHT

Change vehicle

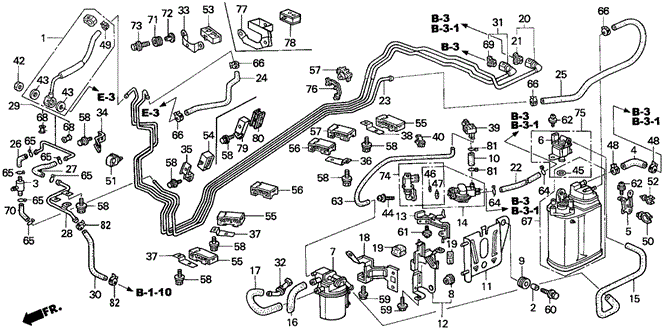

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2002 Honda INSIGHT #1
No. Part # Part # / Description List Price Price
1 01004-PHM-000 01004-PHM-000 / Repair Kit (Engine)

$59.35 $42.02
2 16923-S84-A00 16923-S84-A00 / Collar, Distance

$0.83
3 17301-S0X-A01 17301-S0X-A01 / Port, Vent Service

$47.78 $33.83
4 17301-S3Y-A00 17301-S3Y-A00 / Tube, Fuel Vent (Orvr)

$14.97 $11.98
5 17302-S3Y-A00 17302-S3Y-A00 / Stay, Vent Tube

- -
7 17315-S84-A02 17315-S84-A02 / Filter, Canister

$38.33 $27.14
8 17322-S04-000 17322-S04-000 / Rubber, Canister Mounting

$3.28
9 17322-S84-A00 17322-S84-A00 / Rubber, Canister Mounting

$3.38
10 17351-S3Y-A00 17351-S3Y-A00 / Tube, Press Sensor

$1.78
11 17358-S3Y-A00 17358-S3Y-A00 / Bracket, Canister

$37.92 $26.85
12 17359-S3Y-A00 17359-S3Y-A00 / Bracket B, Canister

$47.50 $33.63
13 17360-S3Y-A00 17360-S3Y-A00 / Stay, Fuel Vent Valve

$26.25 $18.59
14 17371-S02-L01 17371-S02-L01 / Valve (Two-Way)

$68.65 $48.60
15 17372-S3Y-A02 17372-S3Y-A02 / Tube, Canister

$11.58 $9.26
16 17373-S3Y-000 17373-S3Y-000 / Tube, Drain

$5.75
17 17374-S3Y-A00 17374-S3Y-A00 / Tube, Drain Filter

$5.85
18 17378-S3Y-A00 17378-S3Y-A00 / Stay, Dust Filter

$21.25 $17.00
19 17381-SV4-L30 17381-SV4-L30 / Mount, Bypass Solenoid Rubber

$4.58
20 16040-S3Y-A00 16040-S3Y-A00 / Pipe, Fuel Feed

$43.57 $30.85
21 17711-S84-004 17711-S84-004 / Retainer (White) (Sanoh)

$4.33
22 17716-S3Y-A00 17716-S3Y-A00 / Tube, Fuel Vent

$13.43 $10.74
23 17720-S3Y-A01 17720-S3Y-A01 / Pipe, Fuel Vent

$39.88 $28.24
24 17723-S3Y-020 17723-S3Y-020 / Hose, Pressure Regulator Return

$19.53 $15.62
25 17724-S3Y-A30 17724-S3Y-A30 / Tube C, Purge

$28.85 $20.43
26 17728-S3Y-A01 17728-S3Y-A01 / Tube, Purge

$8.03 $7.23
27 17730-S3Y-A01 17730-S3Y-A01 / Tube C, Purge

$5.75
28 17731-S3Y-010 17731-S3Y-010 / Pipe A, Purge Joint

- -
29 17732-S3Y-A02 17732-S3Y-A02 / Pipe B, Purge Joint

$8.42 $7.58
30 17734-S3Y-000 17734-S3Y-000 / Tube D, Purge

$5.75
31 16041-S3Y-A00 16041-S3Y-A00 / Set, Fuel Return P

SET,FUEL RETURN P

$42.30 $29.95
32 17743-S84-A01 17743-S84-A01 / Joint, Drain Bypass Tube

$4.58
34 17761-S3Y-A01 17761-S3Y-A01 / Stay A, Fuel Pipe

$6.25
35 17762-S3Y-A00 17762-S3Y-A00 / Stay B, Fuel Pipe

$6.25
36 17762-S3Y-000 17762-S3Y-000 / Stay B, Fuel Pipe

$6.25
37 17763-S3Y-000 17763-S3Y-000 / Stay C, Fuel Pipe

$6.25
38 17764-S3Y-000 17764-S3Y-000 / Stay D, Fuel Pipe

$6.25
39 37940-PAA-A01 37940-PAA-A01 / Sensor, Vent Pressure

$89.60 $63.44
40 50934-SW5-A80 50934-SW5-A80 / Clip, Accumulator Tube

$3.52
42 90201-PD1-000 90201-PD1-000 / Nut A, Sealing (12MM)

$3.38
43 90428-PD6-003 90428-PD6-003 / Washer, Sealing (12MM)

$3.58
44 90890-SV4-000 90890-SV4-000 / Screw-Washer (5X16)

$1.93
45 91391-S84-A00 91391-S84-A00 / O-Ring

$4.73
46 91392-S02-000 91392-S02-000 / O-Ring, No.1

O-RING (NO.1)

$8.47 $7.62
46 91392-S02-000 91392-S02-000 / O-Ring, No.1

O-RING,NO.1

$8.47 $7.62
47 91393-S02-000 91393-S02-000 / O-Ring (No.2)

$5.76
48 91417-SZ3-003 91417-SZ3-003 / Clamp, Fuel Tube (D20) (Chuo Hatsujo)

$4.80
49 91406-SL4-931 91406-SL4-931 / Clamp, Fuel Hose (D10.5)

$3.52
50 91592-SH3-E01 91592-SH3-E01 / Clip, Fuel Tube

$4.35
51 91592-S3Y-013 91592-S3Y-013 / Clamp, Fuel Pipe

$2.52
52 91594-SM4-013 91594-SM4-013 / Clamp, Fuel Tube

$3.15
54 91595-S3Y-003 91595-S3Y-003 / Clamp A, Fuel Pipe

$11.02 $8.82
55 91596-S3Y-003 91596-S3Y-003 / Clamp B, Fuel Pipe

$8.33 $7.50
56 91597-S3Y-003 91597-S3Y-003 / Clamp C, Fuel Pipe

$8.33 $7.50
57 91599-S3Y-003 91599-S3Y-003 / Clamp E, Fuel Pipe

$4.32
58 93405-06016-05 93405-06016-05 / Bolt-Washer (6X16)

$1.08
59 93405-06016-08 93405-06016-08 / Bolt-Washer (6X16)

$1.08
60 93405-06025-08 93405-06025-08 / Bolt-Washer (6X25)

$1.08
61 93893-05008-08 93893-05008-08 / Screw-Washer (5X8)

$0.87
62 93893-05010-08 93893-05010-08 / Screw-Washer (5X10)

$0.87
63 95001-35003-60M 95001-35003-60M / Bulk Hose, Fuel (3.5X3000)

$11.38 $9.10
81 95002-02104 95002-02104 / Clip, Tube (B10)

$1.18
65 95002-02120 95002-02120 / Clip, Tube (B12)

$1.08
82 95002-41200-04 95002-41200-04 / Clamp, Tube (D12)

$1.58
67 17011-S3Y-A00 17011-S3Y-A00 / Canister Set

$227.52 $158.35
68 17701-SA7-930 17701-SA7-930 / Rubber, Fuel Pipe Insulator

$3.10
69 17711-ST0-004 17711-ST0-004 / Retainer (White) (Sanoh)

$6.67
70 17729-S3Y-A00 17729-S3Y-A00 / Tube, Purge

$8.03 $7.23
73 93403-06016-08 93403-06016-08 / Bolt-Washer (6X16)

$1.08
74 17012-S01-A01 17012-S01-A01 / Valve Set, Solenoid

$115.80 $81.99
74 17012-S01-A01 17012-S01-A01 / Valve Set, Solenoid

$115.80 $81.99
75 17310-SL0-L01 17310-SL0-L01 / Valve, Canister Vent Shut

$142.77 $99.37
76 17758-S0X-J51 17758-S0X-J51 / Rubber, Fuel Pipe

$7.18 $6.46
77 17760-S3Y-020 17760-S3Y-020 / Stay E, Fuel Pipe

$6.58
78 17701-S3Y-000 17701-S3Y-000 / Rubber, Fuel Pipe Insulator

$4.12
