Engine/Cylinder Block - Oil Pan for 2004 Honda CIVIC SEDAN

Select Cylinder Block - Oil Pan Part

2004 Honda CIVIC SEDAN

Change vehicle

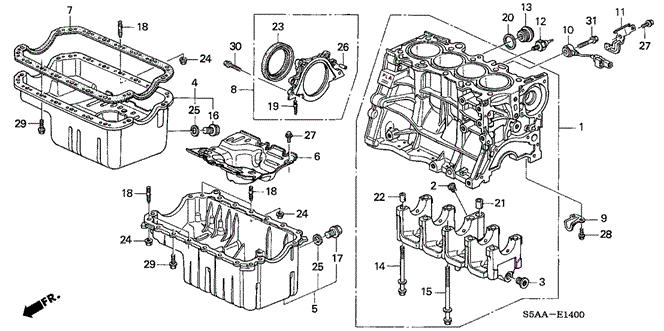

Engine/Cylinder Block - Oil Pan for 2004 Honda CIVIC SEDAN #1
No. Part # Part # / Description List Price Price
1 11000-PLM-810 11000-PLM-810 / Block Assembly, Cylinder (DOT)

BLOCK ASSY., CYLINDER (DOT)

$1,865.40 $1,358.01
2 11106-PE0-300 11106-PE0-300 / Bolt, Sealing (14MM)

$3.47
3 11126-PK1-003 11126-PK1-003 / Bolt, Sealing (22MM)

$4.62
4 11200-PLC-000 11200-PLC-000 / Pan, Oil

$125.57 $87.39
7 11251-P2A-014 11251-P2A-014 / Gasket, Oil Pan (Otsuka)

$41.42 $29.32
8 11300-PLC-020 11300-PLC-020 / Cover Assembly, R Side

COVER ASSY., R. SIDE

$59.08 $41.83
9 11311-PLC-000 11311-PLC-000 / Cover, Breathing Port

$1.87
10 30530-PLE-004 30530-PLE-004 / Sensor, Knock

$75.52 $53.47
11 32745-PLC-000 32745-PLC-000 / Stay E, Engine Harness

$4.57
12 37240-PT0-014 37240-PT0-014 / Switch, Oil Pressure (Tec)

SWITCH, OIL PRESSURE (DENSO)

$30.00 $21.24
12 37240-PT0-014 37240-PT0-014 / Switch, Oil Pressure (Tec)

$30.00 $21.24
12 37240-PT0-014 37240-PT0-014 / Switch, Oil Pressure (Tec)

SWITCH, OIL PRESSURE (FASCO CONTROLS)

$30.00 $21.24
13 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$15.08 $12.06
14 90007-PM6-003 90007-PM6-003 / Bolt-Washer (11X116)

$13.08 $10.46
15 90008-PM6-003 90008-PM6-003 / Bolt-Washer (11X131)

$13.08 $10.46
16 90009-PH1-000 90009-PH1-000 / Bolt, Drain Plug (14MM)

$2.08
19 90042-PR3-000 90042-PR3-000 / Bolt, Stud (6X28)

$4.47
18 90041-PA5-000 90041-PA5-000 / Bolt, Stud (6X28)

$3.10
20 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.82
21 90703-PE0-000 90703-PE0-000 / Pin, Dowel (18X22)

$6.45
22 90715-PC6-000 90715-PC6-000 / Pin, Dowel (13X20)

$3.77
23 91214-PLE-003 91214-PLE-003 / Oil Seal (80X100X10) (Nok)

$20.70 $16.56
23 91214-PLE-003 91214-PLE-003 / Oil Seal (80X100X10) (Nok)

OIL SEAL (80X100X10) (ARAI)

$20.70 $16.56
24 94050-06080 94050-06080 / Nut, Flange (6MM)

$0.43
25 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.47
26 94301-06100 94301-06100 / Pin, Dowel (6X10)

$1.32
27 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.18
28 95701-06014-08 95701-06014-08 / Bolt, Flange (6X14)

$1.07
29 95701-06018-08 95701-06018-08 / Bolt, Flange (6X18)

$1.07
30 95701-06025-08 95701-06025-08 / Bolt, Flange (6X25)

$1.17
31 95701-08035-08 95701-08035-08 / Bolt, Flange (8X35)

$1.03
