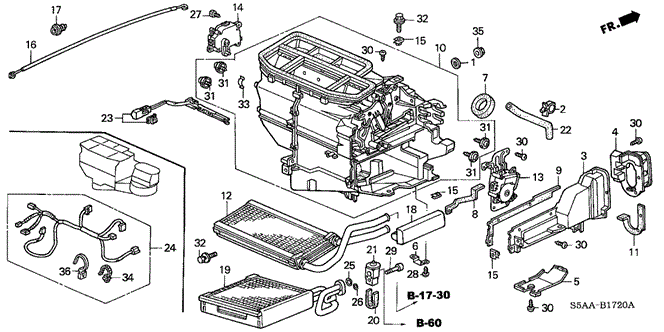

ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2004 Honda CIVIC SEDAN

Select HEATER UNIT Part

2004 Honda CIVIC SEDAN

Change vehicle

No. Part # Part # / Description List Price Price
1 39248-692-003 39248-692-003 / Gasket, Heater

$2.11
3 79027-S5D-A01 79027-S5D-A01 / Case, Expansion Valve Cover

$32.92 $23.31
4 79028-S5D-A01 79028-S5D-A01 / Cover, Flange

$4.92
5 79029-S5D-A01 79029-S5D-A01 / Cover, Foot Duct

$7.08 $6.37
6 79101-S5A-000 79101-S5A-000 / Bracket, Cover (Lower)

$5.33
7 79103-S5A-003 79103-S5A-003 / Seal, Drain

$4.82
8 79104-S5D-A01 79104-S5D-A01 / Seal A

$4.33
9 79105-S5D-A01 79105-S5D-A01 / Seal B

$7.08 $6.37
10 79106-S5D-A52 79106-S5D-A52 / Heater Sub-Assembly

HEATER SUB-ASSY.

$444.53 $304.06
11 79107-S5D-A01 79107-S5D-A01 / Seal C

$4.68
12 79110-S5D-A02 79110-S5D-A02 / Core Sub-Assembly, Heater

CORE SUB-ASSY., HEATER

$302.00 $206.57
13 79140-S5D-A11 79140-S5D-A11 / Motor Assembly, Mode

MOTOR ASSY., MODE

$80.14 $56.73
14 79160-S5A-A01 79160-S5A-A01 / Motor Assembly, Temperature

MOTOR ASSY., TEMPERATURE

$92.30 $65.35
15 79191-SZ3-A01 79191-SZ3-A01 / Nut, Holder

$2.53
16 79544-S5D-A00 79544-S5D-A00 / Cable, Water Valve Control

$7.37 $6.63
17 79770-SE0-000 79770-SE0-000 / Grommet, Water Valve Cable

$5.73
18 80211-S5D-A51 80211-S5D-A51 / Plate Assembly, Heater

PLATE ASSY., HEATER

$49.08 $34.75
24 80650-S5A-A11 80650-S5A-A11 / Sub-Harness, Air Conditioner

$46.20 $32.71
27 90121-SR3-003 90121-SR3-003 / Screw, Tapping (5X12)

$2.12
28 90121-S5A-003 90121-S5A-003 / Screw, Tapping (4X12)

$3.05
30 90127-SX0-003 90127-SX0-003 / Screw, Tapping (4X16)

$1.93
31 90133-SR3-003 90133-SR3-003 / Screw-Washer (4X16)

$2.12
32 90156-SH3-000 90156-SH3-000 / Bolt-Washer (6X24)

$1.22
33 90659-692-000 90659-692-000 / Clamp, Case

$5.63
34 91540-S0A-003 91540-S0A-003 / Clip, Harness Band (96.9MM) (Natural)

$4.32
35 94071-08080 94071-08080 / Nut-Washer (8MM)

$0.88
36 91548-SV4-003 91548-SV4-003 / Clip, Band (6MM Boss) (127MM) (Natural)

$4.95
