CHASSIS/PEDAL for 2004 Honda CIVIC SEDAN

Select PEDAL Part

2004 Honda CIVIC SEDAN

Change vehicle

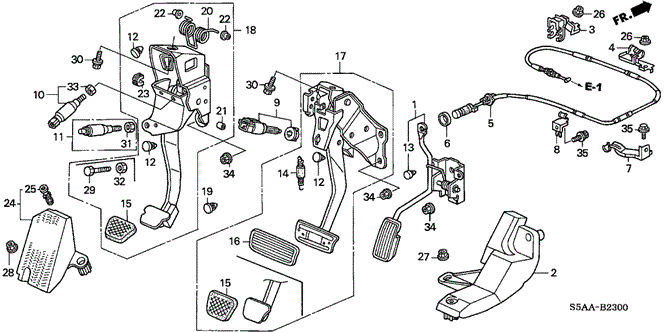

No. Part # Part # / Description List Price Price
1 17800-S6M-A03 17800-S6M-A03 / Pedal Assembly, Accelerator

PEDAL ASSY., ACCELERATOR

$45.27 $32.05
1 17800-S5F-A02 17800-S5F-A02 / Pedal Assembly, Accelerator

PEDAL ASSY., ACCELERATOR

$28.70 $20.32
2 17818-S5A-A01 17818-S5A-A01 / Stopper, Accelerator Stroke

$8.58 $7.72
3 17881-PLM-A00 17881-PLM-A00 / Stay A, Actuator Wire

$5.42
4 17882-PLM-A00 17882-PLM-A00 / Stay B, Actuator Wire

$5.42
5 17910-S5A-G03 17910-S5A-G03 / Wire, Throttle

$20.93 $16.74
6 17921-SA4-730 17921-SA4-730 / Seal, Throttle Cable

$6.05
7 17930-S5A-A00 17930-S5A-A00 / Clamp, Throttle Wire

$29.23 $20.70
8 17932-S5A-A00 17932-S5A-A00 / Clamp, Throttle Wire

$3.30
9 35350-S5A-J04 35350-S5A-J04 / Switch Assembly, Stop (Toyo)

SWITCH ASSY., STOP (TOYO)

$19.72 $15.78
9 35350-S5A-J04 35350-S5A-J04 / Switch Assembly, Stop (Toyo)

SWITCH ASSY., STOP (TOYO)

$19.72 $15.78
9 35350-SMA-013 35350-SMA-013 / Switch Assembly, Stop (Panasonic)

SWITCH ASSY., STOP (PANASONIC)

$5.47
12 46505-SA5-000 46505-SA5-000 / Pad, Pedal Stopper

$2.63
12 46505-S5F-A01 46505-S5F-A01 / Pad, Pedal Stopper

$3.35
13 46505-SA7-000 46505-SA7-000 / Pad, Pedal Stopper

$4.95
14 46530-S5A-003 46530-S5A-003 / Spring Assembly, Pedal Return

SPRING ASSY., PEDAL RETURN

$3.82
14 46530-S5F-A01 46530-S5F-A01 / Spring Assembly, Pedal Return

SPRING ASSY., PEDAL RETURN

$4.95
16 46545-S84-A81 46545-S84-A81 / Cover, Pedal

$15.80 $12.64
16 46545-S5F-A81 46545-S5F-A81 / Cover, Pedal

$4.68
17 46600-S5A-A81 46600-S5A-A81 / Pedal Assembly, Brake

PEDAL ASSY., BRAKE

$88.18 $62.43
24 46991-S5A-A01 46991-S5A-A01 / Bracket, Footrest

$7.67 $6.90
25 46992-SV4-003 46992-SV4-003 / Clip, Footrest

$1.37
26 90207-PG6-010 90207-PG6-010 / Nut, Cap (6MM) (Black)

$3.88
26 90207-RAA-A10 90207-RAA-A10 / Nut, Hex Cap (6MM)

NUT, HEX. CAP (6MM)

$1.40
27 90301-SV7-000 90301-SV7-000 / Nut, Paint Cutting (6MM)

$3.27
28 90301-SV7-000 90301-SV7-000 / Nut, Paint Cutting (6MM)

$3.27
28 90301-S5A-000 90301-S5A-000 / Nut, Paint Cutting (6MM)

$3.27
30 93404-08016-08 93404-08016-08 / Bolt-Washer (8X16)

$1.13
34 94050-08080 94050-08080 / Nut, Flange (8MM)

$0.28
35 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.07
