Transmission - Automatic/AT Servo Body for 2003 Honda CIVIC SEDAN

Select AT Servo Body Part

2003 Honda CIVIC SEDAN

Change vehicle

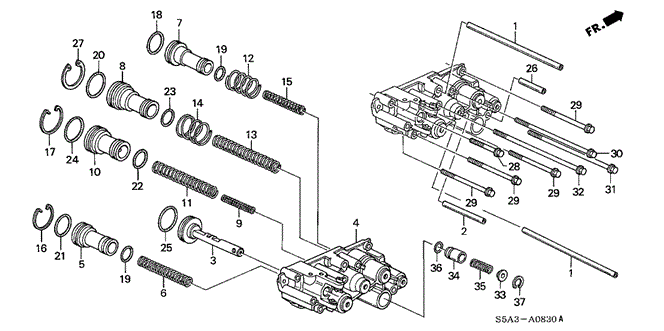

Transmission - Automatic/AT Servo Body for 2003 Honda CIVIC SEDAN #1
No. Part # Part # / Description List Price Price
1 22743-PF0-000 22743-PF0-000 / Pipe, Third Clutch

$12.75 $10.20
2 22748-PW4-000 22748-PW4-000 / Pipe (8X62)

$4.00
3 24271-PX4-000 24271-PX4-000 / Shaft, Shift Fork

$57.12 $40.44
4 27410-PGA-000 27410-PGA-000 / Body, Servo

$173.17 $120.52
5 27561-P4R-000 27561-P4R-000 / Piston, Low Accumulator

$12.77 $10.22
6 27562-P4R-000 27562-P4R-000 / Spring, Low Accumulator

$8.05 $7.25
7 27570-PLX-000 27570-PLX-000 / Piston, Second Accumulator

$17.52 $14.02
8 27574-PDM-000 27574-PDM-000 / Piston, Third Accumulator

$19.92 $15.94
9 27575-P4R-000 27575-P4R-000 / Spring B, Top Accumulator

$3.30
10 27576-P4R-000 27576-P4R-000 / Piston, Top Accumulator

$12.77 $10.22
11 27577-PDM-000 27577-PDM-000 / Spring A, Top Accumulator

$7.32 $6.59
13 27583-PLX-000 27583-PLX-000 / Spring, Third Accumulator

$5.00
15 27588-PLX-000 27588-PLX-000 / Spring A, Second Accumulator

$4.07
16 90604-PX4-000 90604-PX4-000 / Circlip (Inner) (31MM)

$2.75
17 90606-PX4-000 90606-PX4-000 / Circlip (Inner) (36MM)

$2.75
18 91302-PF0-003 91302-PF0-003 / O-Ring (26.9X2.4) (Nok)

$2.28
19 91321-PF4-004 91321-PF4-004 / O-Ring (18.3X2.4) (Nok)

$2.27
20 91324-PF4-004 91324-PF4-004 / O-Ring (28.3X2.4) (Nok)

$2.60
21 91326-PF4-004 91326-PF4-004 / O-Ring (24.4X2.4) (Nok)

$2.60
22 91331-PC9-003 91331-PC9-003 / O-Ring (21.2X2.4) (Arai)

$2.42
36 91331-PL5-J00 91331-PL5-J00 / O-Ring (20.2X2.4) (Nok)

$2.60
24 91344-PC9-004 91344-PC9-004 / O-Ring (29X2.4) (Nok)

$2.78
25 91344-580-000 91344-580-000 / O-Ring (31X2.7) (Arai)

$2.95
26 91704-PF4-000 91704-PF4-000 / Pin, Dowel (8X40)

$4.23
27 94520-35100 94520-35100 / Circlip (Inner) (35MM)

$1.08
28 95701-06045-08 95701-06045-08 / Bolt, Flange (6X45)

$1.45
29 95701-06085-08 95701-06085-08 / Bolt, Flange (6X85)

$1.90
30 95701-06120-08 95701-06120-08 / Bolt, Flange (6X120)

$2.62
31 95701-06130-08 95701-06130-08 / Bolt, Flange (6X130)

$1.07
32 95701-06140-08 95701-06140-08 / Bolt, Flange (6X140)

$2.62
33 27571-PDM-000 27571-PDM-000 / Cover, Third Sub-Accumulator

$6.05
34 27578-PDM-000 27578-PDM-000 / Piston, Third Sub-Accumulator

$24.30 $19.44
35 27586-PDM-000 27586-PDM-000 / Spring, Third Sub-Accumulator

$4.65
37 94520-26000 94520-26000 / Circlip (Inner) (26MM)

$1.17
