Electrical/Exhaust/Heater/Fuel/Heater Unit for 2003 Honda CIVIC HATCHBACK

Select Heater Unit Part

2003 Honda CIVIC HATCHBACK

Change vehicle

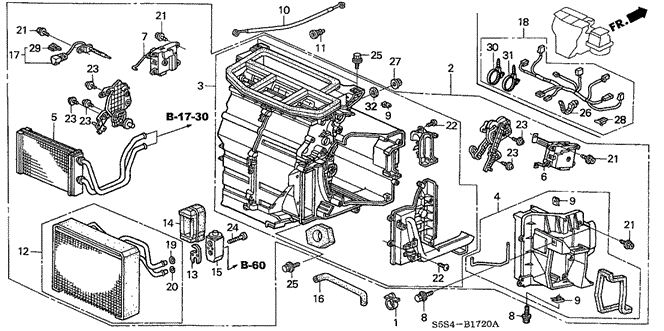

Electrical/Exhaust/Heater/Fuel/Heater Unit for 2003 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
1 53747-SA5-003 53747-SA5-003 / Clip, Power Steering Hose

$7.18 $6.46
2 79100-S5S-S12 79100-S5S-S12 / Heater Unit

$1,055.73 $709.45
3 79106-S5S-S11 79106-S5S-S11 / Heater Sub-Assembly

HEATER SUB-ASSY.

$565.02 $379.69
4 79107-S6D-G01 79107-S6D-G01 / Duct Sub-Assembly, Case

DUCT SUB-ASSY., CASE

$51.67 $36.58
5 79110-S6D-G02 79110-S6D-G02 / Core, Heater

$317.17 $216.94
6 79140-S6D-G41 79140-S6D-G41 / Motor Assembly, Mode

MOTOR ASSY., MODE

$155.08 $107.94
7 79161-S6D-G41 79161-S6D-G41 / Motor Assembly, Air Mix

MOTOR ASSY., AIR MIX

$212.12 $147.63
8 79193-S6A-003 79193-S6A-003 / Bolt, Flange (6X20)

$2.80
9 79194-S6A-003 79194-S6A-003 / Nut (6MM)

$1.83
10 79544-S6D-G00 79544-S6D-G00 / Cable, Water Valve Control

$34.83 $24.66
11 79770-SE0-000 79770-SE0-000 / Grommet, Water Valve Cable

$5.78
12 80211-S6D-G12 80211-S6D-G12 / Evaporator Assembly

EVAPORATOR ASSY.

$297.35 $206.96
13 80215-S6A-003 80215-S6A-003 / Plate

$10.18 $8.14
14 80216-S6A-003 80216-S6A-003 / Insulator, Expansion Valve

$8.05 $7.25
15 80220-S6A-013 80220-S6A-013 / Valve, Expansion

$96.30 $68.18
16 80271-S6M-000 80271-S6M-000 / Hose, Drain

$6.48
17 80560-S6A-941 80560-S6A-941 / Thermistor, Air Conditioner

$16.05 $12.84
18 80650-S6D-G40 80650-S6D-G40 / Sub-Wire Harness, Air Conditioner

$206.43 $143.68
19 80871-SN7-003 80871-SN7-003 / O-Ring (5/8")

$3.62
20 80872-ST7-000 80872-ST7-000 / O-Ring (1/2")

$3.62
21 90122-S30-003 90122-S30-003 / Screw, Tapping (5X12)

$2.20
22 90123-S30-003 90123-S30-003 / Screw, Tapping (5X12)

$2.20
23 90124-S30-003 90124-S30-003 / Screw-Washer (5X12)

$2.23
24 90125-S6A-003 90125-S6A-003 / Bolt (5X35)

$1.70
25 90156-SH3-000 90156-SH3-000 / Bolt-Washer (6X24)

$1.35
26 91540-S0A-003 91540-S0A-003 / Clip, Harness Band (96.9MM) (Natural)

$4.37
27 94071-08080 94071-08080 / Nut-Washer (8MM)

$0.98
28 91533-S04-003 91533-S04-003 / Clip, Connector (Natural)

$2.43
29 91580-SM4-003 91580-SM4-003 / Clip, Connector (Orange)

$4.48
30 32132-SM4-003 32132-SM4-003 / Band, Wire Harness Offset (20)(122.5MM) (Black)

$4.05
31 32133-SM4-003 32133-SM4-003 / Band, Harness Offset (30) (122.5MM) (Yellow)

$2.00
