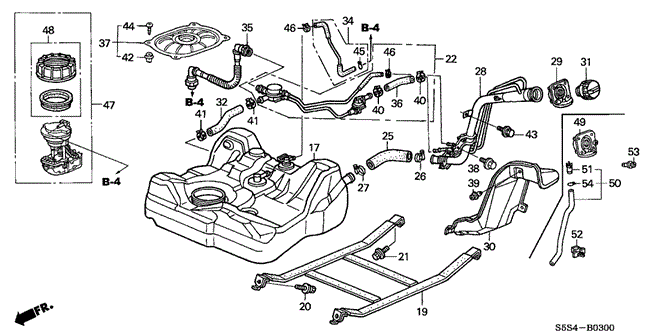

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK for 2003 Honda CIVIC HATCHBACK

Select FUEL TANK Part

2003 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
17 17500-S5A-A36 17500-S5A-A36 / Tank, Fuel (Orvr)

$716.12 $481.23
19 17521-S5A-931 17521-S5A-931 / Band, Fuel Tank Mounting

$65.32 $46.24
20 17525-SM4-000 17525-SM4-000 / Bolt-Washer (10X35)

$3.32
21 17525-S0X-A00 17525-S0X-A00 / Bolt-Washer (10X25)

$0.65
22 17555-S5A-A31 17555-S5A-A31 / Valve Assembly, Vent (Orvr)

VALVE ASSY., VENT (ORVR)

$140.15 $97.54
25 17651-S5A-A30 17651-S5A-A30 / Tube, Filler Neck

$27.73 $19.64
26 17652-S6M-A01 17652-S6M-A01 / Clip, Filler Tube

$5.42
27 17652-S6M-A51 17652-S6M-A51 / Clip, Filler Tube

$5.42
28 17660-S6M-A31 17660-S6M-A31 / Pipe, Fuel Filler

$123.17 $87.20
29 17662-S04-003 17662-S04-003 / Gasket, Fuel Filler (With Clip)

$7.44 $6.70
30 17668-S6D-Y01 17668-S6D-Y01 / Cover, Fuel Filler Pipe

$22.08 $17.66
31 17670-S6M-A32 17670-S6M-A32 / Cap, Fuel Filler (Toyoda)

$42.92 $30.39
32 17701-S5A-A30 17701-S5A-A30 / Tube, Vent (Orvr)

$12.53 $10.02
34 17722-S5A-A31 17722-S5A-A31 / Tube B, Fuel Vent

$13.70 $10.96
35 17725-S5A-A32 17725-S5A-A32 / Tube, Fuel Vent (Orvr)(Epfs)

$50.17 $35.52
36 17727-S5A-A30 17727-S5A-A30 / Tube B, Vent Return

$12.13 $9.70
37 74660-S5A-000 74660-S5A-000 / Cap Assembly, Floor Maintenance Hole

CAP ASSY., FLOOR MAINTENANCE HOLE

$94.08 $66.61
38 90150-S04-003 90150-S04-003 / Bolt, Ground (6X16)

$2.57
39 90657-SA5-003 90657-SA5-003 / Clip, Side Apron Molding

$0.77
40 91413-S5A-003 91413-S5A-003 / Clamp, Fuel Tube (D17.0)

$2.03
41 91417-SZ3-003 91417-SZ3-003 / Clamp, Fuel Tube (D20) (Chuo Hatsujo)

$4.80
42 91601-SH3-013 91601-SH3-013 / Grommet, Screw (5MM) (Black)

$3.12
43 93403-06012-08 93403-06012-08 / Bolt-Washer (6X12)

$1.00
44 93901-25220 93901-25220 / Screw, Tapping (5X12)

$0.58
45 91402-SDC-000 91402-SDC-000 / Clip, Tube (B12)

$1.37
46 91404-SDC-000 91404-SDC-000 / Clamp, Tube (D10)

$2.28
47 17045-S5A-A31 17045-S5A-A31 / Module Assembly, Fuel Pump (Kautex)

MODULE ASSY., FUEL PUMP (KAUTEX)

$310.78 $212.58
48 17046-S0X-A30 17046-S0X-A30 / Nut & Gasket Set, Fuel Lock (Kautex)

$62.02 $43.91
