Chassis/Pedal for 2003 Honda CIVIC HATCHBACK

Select Pedal Part

2003 Honda CIVIC HATCHBACK

Change vehicle

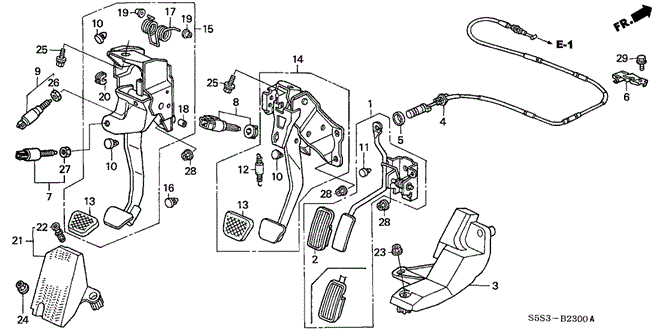

Chassis/Pedal for 2003 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
1 17800-S6M-A03 17800-S6M-A03 / Pedal Assembly, Accelerator

PEDAL ASSY., ACCELERATOR

$45.72 $32.37
3 17818-S5A-A01 17818-S5A-A01 / Stopper, Accelerator Stroke

$9.60 $8.64
4 17910-S5T-A02 17910-S5T-A02 / Wire, Throttle

$90.87 $64.33
5 17921-SA4-730 17921-SA4-730 / Seal, Throttle Cable

$6.75
6 17931-S5T-010 17931-S5T-010 / Clamp, Throttle Wire

$6.67
7 35710-SE3-A01 35710-SE3-A01 / Switch Assembly, Clutch (Inhibiter)

SWITCH ASSY., CLUTCH (INHIBITER)

$56.25 $39.83
8 36750-SMA-013 36750-SMA-013 / Switch Assembly, Stop & Cruise (Panasonic)

SWITCH ASSY., STOP & CRUISE (PANASONIC)

$7.50 $6.75
8 36750-SMA-013 36750-SMA-013 / Switch Assembly, Stop & Cruise (Panasonic)

SWITCH ASSY., STOP & CRUISE (PANASONIC)

$7.50 $6.75
9 36760-SE0-003 36760-SE0-003 / Switch Assembly, Clutch (Tec)

SWITCH ASSY., CLUTCH (TEC)

$35.42 $25.08
10 46505-SA5-000 46505-SA5-000 / Pad, Pedal Stopper

$2.67
11 46505-SA7-000 46505-SA7-000 / Pad, Pedal Stopper

$5.00
12 46530-S5A-003 46530-S5A-003 / Spring Assembly, Pedal Return

SPRING ASSY., PEDAL RETURN

$3.85
13 46545-SA5-000 46545-SA5-000 / Cover, Pedal

$6.45
14 46600-S5A-A01 46600-S5A-A01 / Pedal Assembly, Brake

PEDAL ASSY., BRAKE

$89.07 $63.06
15 46900-S5T-A51 46900-S5T-A51 / Pedal Assembly, Clutch

PEDAL ASSY., CLUTCH

$96.67 $68.44
16 46905-SK7-000 46905-SK7-000 / Stopper, Clutch Pedal

$8.58 $7.72
17 46907-S5A-A01 46907-S5A-A01 / Spring, Clutch Return

$5.92
18 46911-SD4-930 46911-SD4-930 / Bush, Pedal Pin

$3.52
19 46981-S2A-003 46981-S2A-003 / Bush A, Clutch Assistant

$3.48
20 46982-S2A-003 46982-S2A-003 / Bush B, Assistant

$3.05
21 46991-S5A-A01 46991-S5A-A01 / Bracket, Footrest

$9.30 $8.37
22 46992-SV4-003 46992-SV4-003 / Clip, Footrest

$1.42
24 90301-SV7-000 90301-SV7-000 / Nut, Paint Cutting (6MM)

$3.65
23 90301-SV7-000 90301-SV7-000 / Nut, Paint Cutting (6MM)

$3.65
24 90301-SV7-000 90301-SV7-000 / Nut, Paint Cutting (6MM)

$3.65
25 93404-08016-08 93404-08016-08 / Bolt-Washer (8X16)

$1.27
26 94001-10080-0S 94001-10080-0S / Nut, Hex (10MM)

NUT, HEX. (10MM)

$0.97
27 94002-12080-0S 94002-12080-0S / Nut, Hex (12MM)

NUT, HEX. (12MM)

$1.11
28 94050-08080 94050-08080 / Nut, Flange (8MM)

$0.62
29 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.18
