Chassis/Pedal for 1992 Honda CIVIC HATCHBACK

Select Pedal Part

1992 Honda CIVIC HATCHBACK

Change vehicle

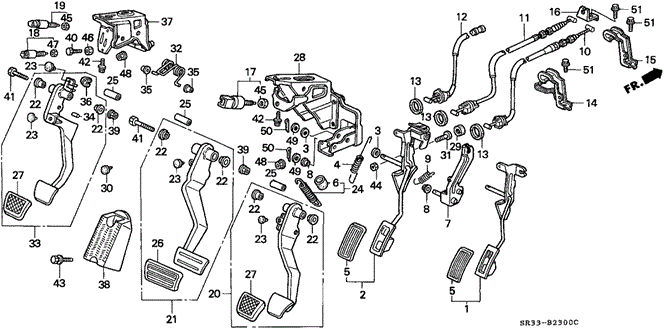

Chassis/Pedal for 1992 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
2 17800-SR3-951 17800-SR3-951 / Pedal, Accelerator

$46.62 $33.00
3 17812-SA7-010 17812-SA7-010 / Washer, Accelerator Pedal

$2.53
4 17814-SR3-000 17814-SR3-000 / Spring, Accelerator Return

- -
5 17816-SK7-000 17816-SK7-000 / Cover, Accelerator Pedal

$10.70 $8.56
6 17819-SD5-000 17819-SD5-000 / Cover, Return Spring

$3.75
11 17910-SR3-A51 17910-SR3-A51 / Wire, Throttle

- -
13 17921-SA4-730 17921-SA4-730 / Seal, Throttle Cable

$6.75
15 17931-SR3-A10 17931-SR3-A10 / Clamp, Throttle Wire

- -
16 17934-SH3-000 17934-SH3-000 / Stay, Throttle Wire

- -
17 35350-SE0-A03 35350-SE0-A03 / Switch Assembly, Stop (Tec)

SWITCH ASSY., STOP (TEC)

$25.00 $20.00
21 46500-SR3-A50 46500-SR3-A50 / Pedal Assembly, Brake

PEDAL ASSY., BRAKE

- -
22 46504-679-300 46504-679-300 / Bush, Pedal

$7.33 $6.60
23 46505-SA5-000 46505-SA5-000 / Pad, Pedal Stopper

$2.67
24 46530-SR3-000 46530-SR3-000 / Spring Assembly, Pedal Return

SPRING ASSY., PEDAL RETURN

- -
25 46535-SM4-000 46535-SM4-000 / Collar, Pedal

$8.05 $7.25
26 46545-SA5-980 46545-SA5-980 / Cover, Brake Pedal

$6.45
28 46590-SR3-A51 46590-SR3-A51 / Bracket, Pedal

$120.35 $85.21
29 46904-SM4-300 46904-SM4-300 / Pad, Accelerator Stopper

$4.38
31 46905-SR3-300 46905-SR3-300 / Bolt, Accelerator Stopper

$2.08
39 90212-671-005 90212-671-005 / Nut, Self-Lock (10MM)

$0.55
41 92201-10070-0J 92201-10070-0J / Bolt, Hex (10x70)

BOLT, HEX. (10X70)

$2.05
42 93404-08016-08 93404-08016-08 / Bolt-Washer (8X16)

$1.27
44 94001-06070-0S 94001-06070-0S / Nut, Hex (6MM)

NUT, HEX. (6MM)

$0.85
45 94001-10080-0S 94001-10080-0S / Nut, Hex (10MM)

NUT, HEX. (10MM)

$0.97
48 94070-08080 94070-08080 / Nut-Washer (8MM)

$0.97
49 94102-10800 94102-10800 / Washer, Plain (10MM)

$1.35
50 94201-25180 94201-25180 / Pin, Split (2.5X18)

$1.45
51 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.18
