Transmission - Automatic/Servo Body for 2006 Honda CIVIC COUPE

Select Servo Body Part

2006 Honda CIVIC COUPE

Change vehicle

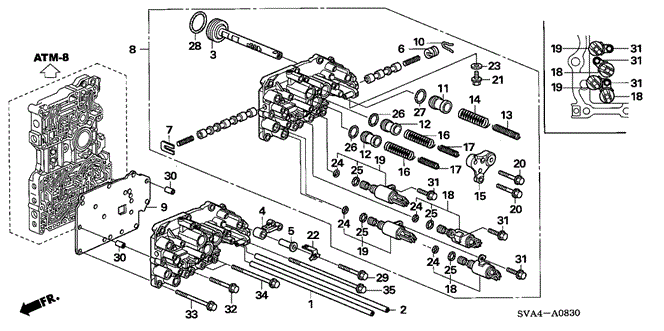

Transmission - Automatic/Servo Body for 2006 Honda CIVIC COUPE #1
No. Part # Part # / Description List Price Price
1 22743-PG4-000 22743-PG4-000 / Pipe, Third Clutch

$17.20 $13.76
2 22743-P4R-000 22743-P4R-000 / Pipe (8X192.5)

$9.02 $8.12
3 24271-PRP-000 24271-PRP-000 / Shaft, Shift Fork

$54.18 $38.36
4 24630-PRP-000 24630-PRP-000 / Arm, Change Detent

$41.75 $29.56
5 24635-PRP-000 24635-PRP-000 / Collar, Change Detent Arm

$9.10 $8.19
6 27142-P6H-000 27142-P6H-000 / Cap (15MM)

$6.23
7 27263-PX3-000 27263-PX3-000 / Seat, Valve Spring

$2.98
8 27400-RPC-000 27400-RPC-000 / Body Assembly, Servo

BODY ASSY., SERVO

$345.82 $236.54
9 27412-RPC-000 27412-RPC-000 / Plate, Servo Separating

$13.88 $11.10
10 27524-P6H-000 27524-P6H-000 / Clip, Cap

$2.82
11 27572-PRP-000 27572-PRP-000 / Piston, Second Accumulator

$10.57 $8.46
12 27574-PRP-000 27574-PRP-000 / Piston, Third Accumulator

$10.57 $8.46
13 27575-RPC-000 27575-RPC-000 / Spring B, Top Accumulator

$3.02
14 27577-RPC-000 27577-RPC-000 / Spring A, Top Accumulator

$4.55
15 27580-RPC-000 27580-RPC-000 / Cover, Servo Accumulator

$14.43 $11.54
16 27581-RPC-000 27581-RPC-000 / Spring A, Second Accumulator

$3.62
17 27584-RPC-000 27584-RPC-000 / Spring B, Second Accumulator

$3.62
18 28400-RPC-003 28400-RPC-003 / Solenoid Assembly A

SOLENOID ASSY. A

$92.78 $65.69
19 28500-RPC-003 28500-RPC-003 / Solenoid Assembly B

SOLENOID ASSY. B

$92.78 $65.69
20 90001-PRP-000 90001-PRP-000 / Bolt, Flange (6X30)

$3.15
21 90024-612-000 90024-612-000 / Bolt, Sealing (8MM)

$3.77
22 90433-PRP-000 90433-PRP-000 / Washer, Lock (6MM)

$2.63
23 90471-580-000 90471-580-000 / Gasket (8MM)

$1.85
24 91301-P6H-003 91301-P6H-003 / O-Ring (7.6X1.9) (Keihin)

$2.23
25 91302-P6H-003 91302-P6H-003 / O-Ring (9.6X1.9) (Keihin)

$1.83
26 91321-PF4-004 91321-PF4-004 / O-Ring (18.3X2.4) (Nok)

$2.27
27 91331-PL5-J00 91331-PL5-J00 / O-Ring (20.2X2.4) (Nok)

$2.60
28 91344-580-000 91344-580-000 / O-Ring (31X2.7) (Arai)

$2.95
29 93301-06040-0H 93301-06040-0H / Bolt, Hex (6x40)

BOLT, HEX. (6X40)

$0.93
30 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28
31 95701-06016-08 95701-06016-08 / Bolt, Flange (6X16)

$1.07
32 95701-06035-08 95701-06035-08 / Bolt, Flange (6X35)

$1.23
33 95701-06055-08 95701-06055-08 / Bolt, Flange (6X55)

$1.45
34 95701-06070-08 95701-06070-08 / Bolt, Flange (6X70)

$1.55
35 95701-06105-08 95701-06105-08 / Bolt, Flange (6X105)

$2.48
