Engine/Engine Wire Harness for 2004 Honda CIVIC COUPE

Select Engine Wire Harness Part

2004 Honda CIVIC COUPE

Change vehicle

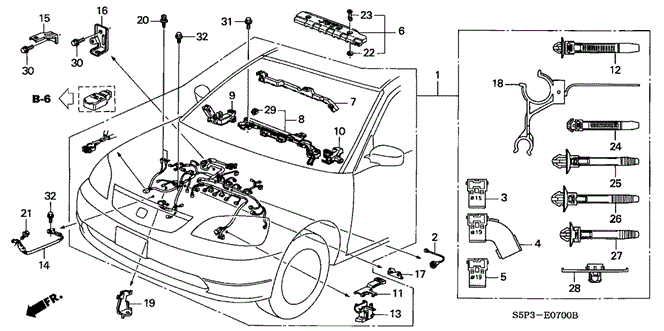

Engine/Engine Wire Harness for 2004 Honda CIVIC COUPE #1
No. Part # Part # / Description List Price Price
1 32110-PLM-A51 32110-PLM-A51 / Wire Harness, Engine

$491.30 $336.05
2 32117-PLC-000 32117-PLC-000 / Sub-Wire Harness, Sensor

$6.10
3 32117-P65-003 32117-P65-003 / Holder, Corrugated (15MM) (Dark Blue)

$5.35
4 32118-PLM-A01 32118-PLM-A01 / Holder, Corrugated Tube (19MM)(Dark Green)

$4.80
5 32118-P72-003 32118-P72-003 / Holder, Corrugated (19MM) (Dark Green)

$7.25 $6.53
6 32120-PLC-000 32120-PLC-000 / Cover Assembly, Engine Wire Harness

COVER ASSY., ENGINE WIRE HARNESS

$44.48 $31.49
7 32127-PLC-000 32127-PLC-000 / Holder A, Harness

$13.58 $10.86
8 32128-PLC-000 32128-PLC-000 / Holder Assembly B, Engine Harness

HOLDER ASSY. B, ENGINE HARNESS

$19.37 $15.50
9 32129-PLC-000 32129-PLC-000 / Holder C, Harness

$11.22 $8.98
10 32131-PLC-000 32131-PLC-000 / Holder D, Harness

$8.05 $7.25
11 32132-PLC-000 32132-PLC-000 / Holder, Harness (Upper)

$4.07
12 32132-SM4-003 32132-SM4-003 / Band, Wire Harness Offset (20)(122.5MM) (Black)

$4.20
13 32133-PLC-000 32133-PLC-000 / Holder, Harness (Lower)

$6.35
14 32610-S5A-000 32610-S5A-000 / Cable, Sub-Ground

$7.42 $6.68
15 32741-PLM-A00 32741-PLM-A00 / Stay A, Engine Wire Harness

$4.40
16 32742-PLM-A00 32742-PLM-A00 / Stay B, Engine Wire Harness

$3.65
18 32750-PLC-003 32750-PLC-003 / Clamp K, Engine Wire Harness

$4.92
20 90114-SM4-900 90114-SM4-900 / Bolt (6X15)

$4.55
21 90153-SE0-003 90153-SE0-003 / Bolt, Ground (6X12)

$0.55
22 90501-SS8-A01 90501-SS8-A01 / Retainer

$3.62
23 91501-P8A-A01 91501-P8A-A01 / Stud

$5.23
24 91506-P01-003 91506-P01-003 / Clip A, Harness Band (129.4MM)(Dark Gray)

$4.83
25 91507-PLC-003 91507-PLC-003 / Clip, Wire Harness (132.3MM) (Dark Blue)

$3.10
26 91551-SF4-003 91551-SF4-003 / Band, Wire Harness (110MM) (Brown)

$5.10
27 91558-ST5-003 91558-ST5-003 / Clip, Harness Band (135MM) (Natural)

$4.83
28 91571-SP0-003 91571-SP0-003 / Clip, Wire Harness (64MM) (Black)

$5.60
29 91601-P8A-A01 91601-P8A-A01 / Receptacle

$1.35
30 93403-06012-08 93403-06012-08 / Bolt-Washer (6X12)

$1.15
31 93404-06025-08 93404-06025-08 / Bolt-Washer (6X25)

$1.27
32 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.22
