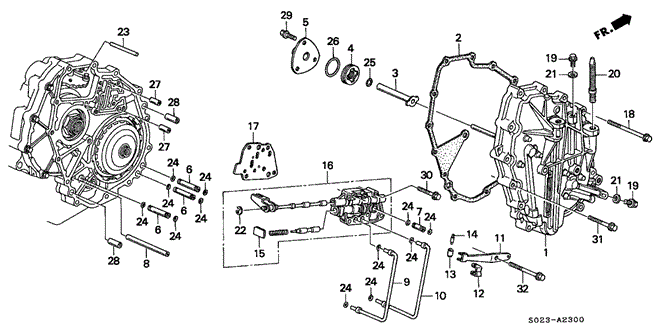

TRANSMISSION - AUTOMATIC/CVT RIGHT SIDE COVER for 1996 Honda CIVIC COUPE

Select CVT RIGHT SIDE COVER Part

1996 Honda CIVIC COUPE

Change vehicle

No. Part # Part # / Description List Price Price
1 21240-P4V-000 21240-P4V-000 / Cover, R Side

COVER, R. SIDE

$274.37 $190.96
2 21813-P4V-000 21813-P4V-000 / Gasket, R Cover

GASKET, R. COVER

$37.28 $26.40
3 22711-P4V-000 22711-P4V-000 / Pipe A, Feed

$11.88 $9.50
4 22713-P4V-000 22713-P4V-000 / Guide A, Feed Pipe

$11.69 $9.35
5 22722-P4V-000 22722-P4V-000 / Guide, Oil Feed

$10.30 $8.24
6 22741-P4V-000 22741-P4V-000 / Pipe (10.9X39.6)

$7.40 $6.66
7 22742-P4V-000 22742-P4V-000 / Pipe (10.9X18.6)

$5.85
8 22748-PS5-900 22748-PS5-900 / Pipe (8X71)

$2.67
9 22771-P4V-000 22771-P4V-000 / Pipe A, Manual Valve Body

$14.77 $11.82
10 22772-P4V-000 22772-P4V-000 / Pipe B, Manual Valve Body

$14.77 $11.82
11 24621-P4V-000 24621-P4V-000 / Spring, Detent

$16.92 $13.54
12 24624-PY4-000 24624-PY4-000 / Guide, Detent Spring

$5.00
13 24625-PY4-000 24625-PY4-000 / Roller, Detent

$5.00
14 24626-PY4-000 24626-PY4-000 / Pin, Detent

$5.93
15 27263-PX3-000 27263-PX3-000 / Seat, Valve Spring

$2.95
16 27400-P4V-000 27400-P4V-000 / Body Assembly, Manual Valve

BODY ASSY., MANUAL VALVE

$379.53 $259.60
17 27412-P4V-000 27412-P4V-000 / Plate, Manual Valve Separating

$17.17 $13.74
18 90003-P4V-000 90003-P4V-000 / Bolt, Flange (8X60)

$5.73
19 90024-612-000 90024-612-000 / Bolt, Sealing (8MM)

$3.38
20 90380-S04-000 90380-S04-000 / Bolt, Stud (12X73)

$6.97
21 90471-580-000 90471-580-000 / Gasket (8MM)

$1.84
22 90607-081-000 90607-081-000 / Circlip (7MM)

$2.95
23 90702-P4V-003 90702-P4V-003 / Roller (6X39.6)

$2.68
24 91311-PA9-004 91311-PA9-004 / O-Ring (7.7X1.9) (Nok)

$2.13
25 91314-PW4-003 91314-PW4-003 / O-Ring (11X1.9) (Nok)

$1.90
26 91326-P4V-004 91326-P4V-004 / O-Ring (26.7X1.9) (Arai)

$2.57
27 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.27
28 94301-10160 94301-10160 / Pin, Dowel (10X16)

$1.43
29 95701-06016-00 95701-06016-00 / Bolt, Flange (6X16)

$0.95
30 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.30
31 95701-06035-08 95701-06035-08 / Bolt, Flange (6X35)

$1.10
32 95801-06045-00 95801-06045-00 / Bolt, Flange (6X45)

$1.30
