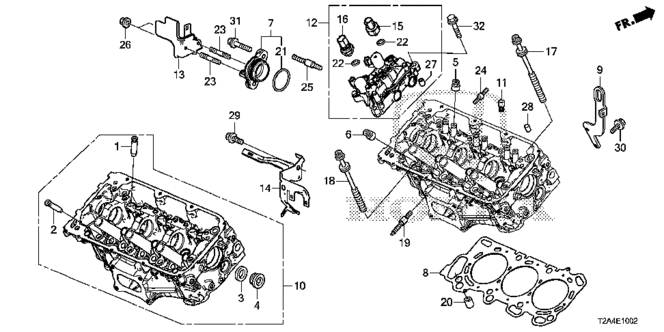

ENGINE/REAR CYLINDER HEAD (V6) for 2013 Honda ACCORD SEDAN

Select REAR CYLINDER HEAD (V6) Part

2013 Honda ACCORD SEDAN

Change vehicle

No. Part # Part # / Description List Price Price
1 12204-PJ7-305 12204-PJ7-305 / Guide, Valve (Over Size)

$10.95 $8.76
2 12205-PJ7-305 12205-PJ7-305 / Guide, Ex Valve (Over Size)

GUIDE, EX. VALVE (OVER SIZE)

$12.00 $9.60
3 12207-634-300 12207-634-300 / Washer, Sealing Bolt

$3.74
4 12208-P8C-A01 12208-P8C-A01 / Bolt, Sealing (28MM)

$8.80 $7.92
5 12210-PZ1-004 12210-PZ1-004 / Seal A, Valve Stem (Nok)

$1.89
6 12211-PZ1-004 12211-PZ1-004 / Seal B, Valve Stem (Nok)

$1.89
7 12240-RDV-J00 12240-RDV-J00 / Cover Assembly, Rear Camshaft Thrust

COVER ASSY., RR. CAMSHAFT THRUST

$24.17 $19.34
8 12261-R70-A01 12261-R70-A01 / Gasket, Rear Cylinder Head (Nippon Leakless)

GASKET, RR. CYLINDER HEAD (NIPPON LEAKLESS)

$44.42 $31.45
9 12293-5G0-A01 12293-5G0-A01 / Hanger, Engine

$16.80 $13.44
10 12300-5G0-810 12300-5G0-810 / Cylinder Head Assembly, Rear (DOT)

CYLINDER HEAD ASSY., RR. (DOT)

$628.06 $457.23
11 14820-5G0-A02 14820-5G0-A02 / Motion, Lost

$6.22
12 15820-5G0-A01 15820-5G0-A01 / Valve Assembly, Rear Spool

VALVE ASSY., RR. SPOOL

$218.03 $151.75
13 36161-5G0-A00 36161-5G0-A00 / Stay, Purge Joint

$5.83
14 36535-5G0-A00 36535-5G0-A00 / Stay, Rear Laf Connector

STAY, RR. LAF CONNECTOR

$10.00 $9.00
15 37240-R70-A04 37240-R70-A04 / Switch Assembly, Oil Pressure

SWITCH ASSY., OIL PRESSURE

$29.35 $20.78
16 37250-5A2-A01 37250-5A2-A01 / Switch Assembly, Valve Timing Oil Pressure

SWITCH ASSY., VALVE TIMING OILPRESSURE

$68.77 $48.69
17 90005-5G0-A01 90005-5G0-A01 / Bolt-Washer (12X188)

$6.35
18 90005-PAA-A01 90005-PAA-A01 / Bolt-Washer (12X163)

$5.68
19 90026-P8A-A00 90026-P8A-A00 / Bolt, Stud (8X41)

$3.12
20 90705-PT0-000 90705-PT0-000 / Pin, Dowel (16X22)

$2.42
21 91301-P8A-A00 91301-P8A-A00 / O-Ring (48.5X2.4)

$1.30
22 91319-PAA-A01 91319-PAA-A01 / O-Ring (13X1.5)

$3.03
23 92900-06012-1B 92900-06012-1B / Bolt, Stud (6X12)

$0.83
24 92900-08025-1B 92900-08025-1B / Bolt, Stud (8X25)

$1.33
25 92900-08032-1B 92900-08032-1B / Bolt, Stud (8X32)

$1.40
26 94050-06080 94050-06080 / Nut, Flange (6MM)

$0.27
27 94301-10120 94301-10120 / Pin, Dowel (10X12)

$2.63
28 94302-08100 94302-08100 / Pin B, Dowel (8X10)

$1.30
29 95701-08016-08 95701-08016-08 / Bolt, Flange (8X16)

$1.05
30 95701-08022-08 95701-08022-08 / Bolt, Flange (8X22)

$1.30
31 95701-08028-08 95701-08028-08 / Bolt, Flange (8X28)

$1.30
32 95701-08040-08 95701-08040-08 / Bolt, Flange (8X40)

$1.38
