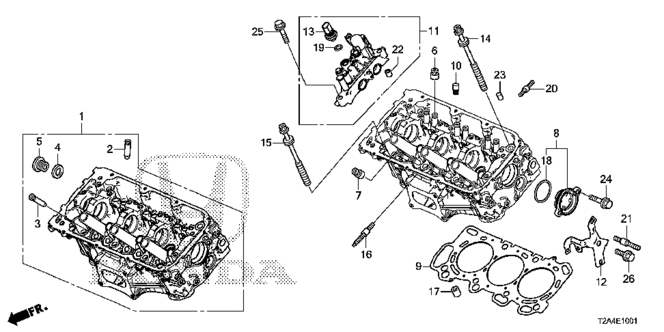

ENGINE/FRONT CYLINDER HEAD (V6) for 2013 Honda ACCORD SEDAN

Select FRONT CYLINDER HEAD (V6) Part

2013 Honda ACCORD SEDAN

Change vehicle

No. Part # Part # / Description List Price Price
1 12100-5G0-305 12100-5G0-305 / Cylinder Head Assembly, Front

CYLINDER HEAD ASSY., FR.

$660.95 $481.17
2 12204-PJ7-305 12204-PJ7-305 / Guide, Valve (Over Size)

$11.07 $8.86
3 12205-PJ7-305 12205-PJ7-305 / Guide, Ex Valve (Over Size)

GUIDE, EX. VALVE (OVER SIZE)

$12.12 $9.70
4 12207-634-300 12207-634-300 / Washer, Sealing Bolt

$4.10
5 12208-P8C-A01 12208-P8C-A01 / Bolt, Sealing (28MM)

$9.68 $8.71
6 12210-PZ1-004 12210-PZ1-004 / Seal A, Valve Stem (Nok)

$1.91
7 12211-PZ1-004 12211-PZ1-004 / Seal B, Valve Stem (Nok)

$1.91
8 12230-P8A-A00 12230-P8A-A00 / Cover Assembly, Front Camshaft Thrust

COVER ASSY., FR. CAMSHAFT THRUST

$9.63 $8.67
9 12251-R70-A01 12251-R70-A01 / Gasket, Front Cylinder Head (Nippon Leakless)

GASKET, FR. CYLINDER HEAD (NIPPON LEAKLESS)

$44.87 $31.77
10 14820-5G0-A02 14820-5G0-A02 / Motion, Lost

$6.83
11 15810-5G0-A01 15810-5G0-A01 / Valve Assembly, Front Spool

VALVE ASSY., FR. SPOOL

$180.42 $125.57
12 36533-5G0-A00 36533-5G0-A00 / Stay, Front Laf Connector

STAY, FR. LAF CONNECTOR

$10.45 $8.36
13 37250-5A2-A01 37250-5A2-A01 / Switch Assembly, Valve Timing Oil Pressure

SWITCH ASSY., VALVE TIMING OILPRESSURE

$75.65 $53.56
14 90005-5G0-A01 90005-5G0-A01 / Bolt-Washer (12X188)

$6.98
15 90005-PAA-A01 90005-PAA-A01 / Bolt-Washer (12X163)

$6.25
16 90026-P8A-A00 90026-P8A-A00 / Bolt, Stud (8X41)

$3.43
17 90705-PT0-000 90705-PT0-000 / Pin, Dowel (16X22)

$2.43
18 91301-P8A-A00 91301-P8A-A00 / O-Ring (48.5X2.4)

$1.32
19 91319-PAA-A01 91319-PAA-A01 / O-Ring (13X1.5)

$3.07
20 92900-08025-1B 92900-08025-1B / Bolt, Stud (8X25)

$1.47
21 92900-08032-1B 92900-08032-1B / Bolt, Stud (8X32)

$1.53
22 94301-10120 94301-10120 / Pin, Dowel (10X12)

$2.67
23 94302-08100 94302-08100 / Pin B, Dowel (8X10)

$1.32
24 95701-08028-08 95701-08028-08 / Bolt, Flange (8X28)

$1.43
25 95701-08040-08 95701-08040-08 / Bolt, Flange (8X40)

$1.52
26 95701-10016-08 95701-10016-08 / Bolt, Flange (10X16)

$1.48
