Engine/Cylinder Block - Oil Pan (V6) for 2013 Honda ACCORD SEDAN

Select Cylinder Block - Oil Pan (V6) Part

2013 Honda ACCORD SEDAN

Change vehicle

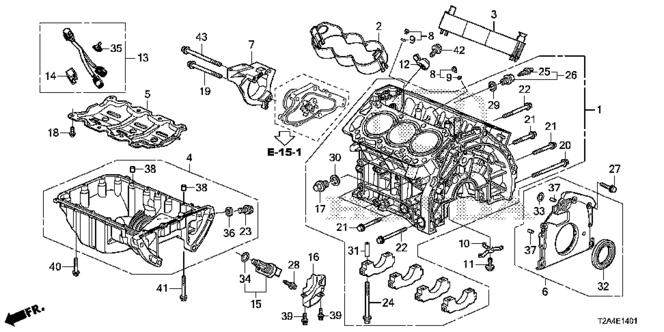

Engine/Cylinder Block - Oil Pan (V6) for 2013 Honda ACCORD SEDAN #1
No. Part # Part # / Description List Price Price
1 11000-5G0-A11 11000-5G0-A11 / Block Assembly, Cylinder

BLOCK ASSY., CYLINDER

$1,186.08 $863.46
2 11103-5G0-A00 11103-5G0-A00 / Spacer, Cooling Control (Front)

SPACER, COOLING CONTROL (FR)

$40.48 $28.66
3 11104-5G0-A00 11104-5G0-A00 / Spacer, Cooling Control (Rear)

SPACER, COOLING CONTROL (RR)

$39.83 $28.20
4 11200-5MH-A00 11200-5MH-A00 / Pan, Oil

$113.95 $80.68
5 11221-5G0-A00 11221-5G0-A00 / Plate, Baffle

$13.82 $11.06
6 11300-R70-A00 11300-R70-A00 / Case Assembly, Oil Seal

CASE ASSY., OIL SEAL

$75.11 $53.18
7 11910-R70-A00 11910-R70-A00 / Bracket, Engine Side Mounting

$44.73 $31.67
8 15140-P8A-A00 15140-P8A-A00 / Orifice Assembly, Oil Control

ORIFICE ASSY., OIL CONTROL

$9.20 $8.28
9 15142-P8A-A00 15142-P8A-A00 / O-Ring (8.8X2.4)

$2.57
10 15280-5G0-A00 15280-5G0-A00 / Body, Oil Jet

$16.55 $13.24
11 15290-5G0-A00 15290-5G0-A00 / Bolt, Oil Jet

$27.22 $19.27
12 30530-R1A-A01 30530-R1A-A01 / Sensor, Knock

$78.67 $55.70
13 32113-5G0-A00 32113-5G0-A00 / Harness, Knock Sensor Sub

$30.55 $21.63
14 32122-5A2-A01 32122-5A2-A01 / Cover, Rear (Wpc 2P 040 F)

COVER, RR. (WPC 2P 040 F)

$5.32
15 37500-R40-A01 37500-R40-A01 / Sensor Assembly, Crank

SENSOR ASSY., CRANK

$108.75 $77.00
16 37503-R70-A00 37503-R70-A00 / Cover, Crank Sensor

$23.27 $18.62
17 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$15.08 $12.06
18 90001-RKG-000 90001-RKG-000 / Bolt-Washer (6X15)

$3.15
19 90002-R70-A00 90002-R70-A00 / Bolt, Flange (10X85)

$2.37
20 90006-P8A-A01 90006-P8A-A01 / Bolt-Washer (10X109)

$7.92 $7.13
21 90008-P8A-A01 90008-P8A-A01 / Bolt-Washer (10X60)

$6.35
22 90009-P8A-A01 90009-P8A-A01 / Bolt-Washer (10X80)

$7.03 $6.33
23 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

$8.02 $7.22
23 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

BOLT, DRAIN PLUG (14MM)

$8.02 $7.22
24 90014-RCA-A01 90014-RCA-A01 / Bolt-Washer (11X105)

$3.50
25 90030-PH7-000 90030-PH7-000 / Bolt, Breathing

$14.37 $11.50
26 90040-P8A-A01 90040-P8A-A01 / Bolt, Drain Plug

$18.10 $14.48
27 90052-PH7-000 90052-PH7-000 / Bolt, Flange (6X22)

$3.65
28 90139-R70-A00 90139-R70-A00 / Bolt, Flange (6X20.5) (Guide)

$0.32
29 90401-P8A-A00 90401-P8A-A00 / Washer, Drain (18MM)

$4.02
30 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.82
31 90715-PH7-000 90715-PH7-000 / Pin, Dowel (13X37)

$3.77
32 91214-RCA-A01 91214-RCA-A01 / Oil Seal (80X98X8) (Nok)

$13.40 $10.72
32 91214-RCA-A01 91214-RCA-A01 / Oil Seal (80X98X8) (Nok)

OIL SEAL (80X98X8) (ARAI)

$13.40 $10.72
33 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

$1.32
34 91333-PNA-003 91333-PNA-003 / O-Ring (15X1.9)

$1.98
35 91506-RTA-003 91506-RTA-003 / Clip A, Harness Band (129.4MM)(Dark Violet)

$3.58
36 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.47
37 94301-06100 94301-06100 / Pin, Dowel (6X10)

$1.32
38 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28
39 95701-06014-05 95701-06014-05 / Bolt, Flange (6X14)

$0.92
40 95701-06032-08 95701-06032-08 / Bolt, Flange (6X32)

$1.23
41 95701-06050-08 95701-06050-08 / Bolt, Flange (6X50)

$1.45
42 95701-08032-08 95701-08032-08 / Bolt, Flange (8X32)

$1.53
43 95801-10105-08 95801-10105-08 / Bolt, Flange (10X105)

$3.18
