ENGINE/CYLINDER BLOCK - OIL PAN (V6) for 2012 Honda ACCORD SEDAN

Select CYLINDER BLOCK - OIL PAN (V6) Part

2012 Honda ACCORD SEDAN

Change vehicle

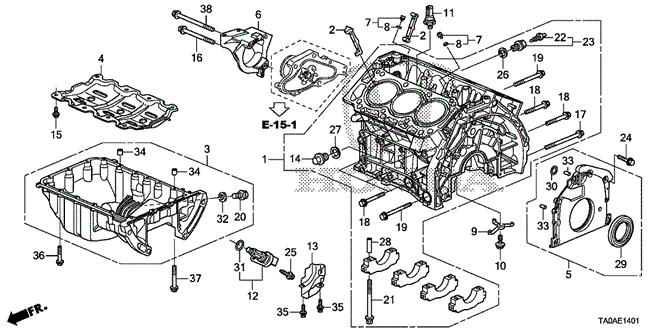

No. Part # Part # / Description List Price Price
1 11000-R70-A01 11000-R70-A01 / Block Assembly, Cylinder

BLOCK ASSY., CYLINDER

$1,256.77 $914.93
2 11103-R70-A01 11103-R70-A01 / Plate, Partition

$8.68 $7.81
3 11200-RN0-A01 11200-RN0-A01 / Pan, Oil

$112.08 $79.36
3 11200-5MH-A00 11200-5MH-A00 / Pan, Oil

PAN COMP,OIL

$112.08 $79.36
4 11221-R70-A10 11221-R70-A10 / Plate, Baffle

$10.77 $8.62
5 11300-R70-A00 11300-R70-A00 / Case Assembly, Oil Seal

CASE ASSY., OIL SEAL

$75.02 $53.11
6 11910-R70-A00 11910-R70-A00 / Bracket, Engine Side Mounting

$44.73 $31.67
7 15140-P8A-A00 15140-P8A-A00 / Orifice Assembly, Oil Control

ORIFICE ASSY., OIL CONTROL

$9.20 $8.28
8 15142-P8A-A00 15142-P8A-A00 / O-Ring (8.8X2.4)

$2.57
9 15280-R70-A00 15280-R70-A00 / Body, Oil Jet

$18.73 $14.98
10 15290-RJA-000 15290-RJA-000 / Bolt, Oil Jet

$23.10 $18.48
11 30530-RNA-A01 30530-RNA-A01 / Sensor, Knock

$30.97 $21.92
12 37500-R40-A01 37500-R40-A01 / Sensor Assembly, Crank

SENSOR ASSY., CRANK

$105.92 $74.99
13 37503-R70-A00 37503-R70-A00 / Cover, Crank Sensor

$22.92 $18.34
14 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$14.87 $11.90
15 90001-RKG-000 90001-RKG-000 / Bolt-Washer (6X15)

$3.10
16 90002-R70-A00 90002-R70-A00 / Bolt, Flange (10X85)

$2.33
17 90006-P8A-A01 90006-P8A-A01 / Bolt-Washer (10X109)

$7.80 $7.02
18 90008-P8A-A01 90008-P8A-A01 / Bolt-Washer (10X60)

$6.25
19 90009-P8A-A01 90009-P8A-A01 / Bolt-Washer (10X80)

$6.93
20 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

$8.02 $7.22
21 90014-RCA-A01 90014-RCA-A01 / Bolt-Washer (11X105)

$3.45
22 90030-PH7-000 90030-PH7-000 / Bolt, Breathing

$14.15 $11.32
23 90040-P8A-A01 90040-P8A-A01 / Bolt, Drain Plug

$17.83 $14.26
24 90052-PH7-000 90052-PH7-000 / Bolt, Flange (6X22)

$3.60
25 90139-R70-A00 90139-R70-A00 / Bolt, Flange (6X20.5) (Guide)

$0.32
26 90401-P8A-A00 90401-P8A-A00 / Washer, Drain (18MM)

$3.95
27 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.77
28 90715-PH7-000 90715-PH7-000 / Pin, Dowel (13X37)

$3.77
29 91214-R70-A01 91214-R70-A01 / Oil Seal (80X98X8) (Arai)

$13.40 $10.72
29 91214-RCA-A01 91214-RCA-A01 / Oil Seal (80X98X8) (Nok)

$13.40 $10.72
30 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

O-RING (26.2X2.4) (NOK)

$1.32
30 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

$1.32
31 91333-PNA-003 91333-PNA-003 / O-Ring (15X1.9)

$1.98
32 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.47
33 94301-06100 94301-06100 / Pin, Dowel (6X10)

$1.32
34 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28
35 95701-06014-05 95701-06014-05 / Bolt, Flange (6X14)

$0.92
36 95701-06032-08 95701-06032-08 / Bolt, Flange (6X32)

$1.22
37 95701-06050-08 95701-06050-08 / Bolt, Flange (6X50)

$1.43
38 95801-10105-08 95801-10105-08 / Bolt, Flange (10X105)

$3.13
