Engine/Carburetor ('77) for 1977 Honda ACCORD HATCHBACK

Select Carburetor ('77) Part

1977 Honda ACCORD HATCHBACK

Change vehicle

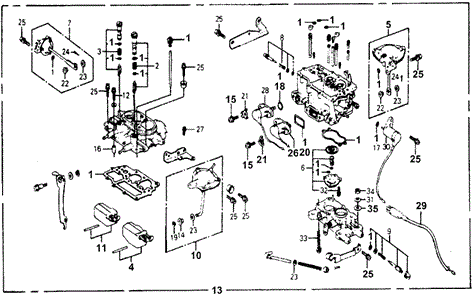

Engine/Carburetor ('77) for 1977 Honda ACCORD HATCHBACK #1
No. Part # Part # / Description List Price Price
1 16010-657-671 16010-657-671 / Gasket Set, Carburetor

- -
2 16011-657-015 16011-657-015 / Valve Set, Main Float

- -
3 16012-657-005 16012-657-005 / Valve Set, Sub-Float

- -
4 16013-657-671 16013-657-671 / Float Set, Main

$36.98 $26.18
5 16020-671-005 16020-671-005 / Diaphragm Assembly, Set

DIAPHRAGM ASSY., SET

- -
6 16021-657-015 16021-657-015 / Diaphragm Set, Pump

- -
7 16025-671-005 16025-671-005 / Diaphragm Set, Choke

- -
8 16028-657-671 16028-657-671 / Screw Set B

- -
9 16029-657-671 16029-657-671 / Screw Set A

- -
9 16029-657-821 16029-657-821 / Screw Set A

- -
10 16043-676-005 16043-676-005 / Opener Set, Throttle

- -
11 16049-657-671 16049-657-671 / Sub-Float Set

- -
12 16080-657-005 16080-657-005 / Bolt-Washer (5X25)

- -
13 16100-671-661 16100-671-661 / Carburetor Assembly

CARBURETOR ASSY.

- -
13 16100-671-821 16100-671-821 / Carburetor Assembly

CARBURETOR ASSY.

- -
14 16131-657-300 16131-657-300 / Collar

- -
15 16132-657-300 16132-657-300 / Bolt-Washer (6X20)

- -
16 16172-657-005 16172-657-005 / Pin, Knock

- -
17 16178-548-004 16178-548-004 / O-Ring (5.8X1.9)

$3.40
18 16178-657-300 16178-657-300 / O-Ring (18x1.9)

- -
19 16179-676-005 16179-676-005 / E-Clip

- -
20 16192-657-310 16192-657-310 / O-Ring, Main Jet

- -
21 16198-657-310 16198-657-310 / Washer, Main Jet Cover

- -
22 16202-657-300 16202-657-300 / Collar

$2.25
23 16203-657-300 16203-657-300 / Washer, Plain (4MM)

- -
24 16204-657-300 16204-657-300 / Pin, Split

$2.43
25 16084-PE0-921 16084-PE0-921 / Bolt, Washer (5X20)

BOLT-WASHER (5X20)

- -
26 16208-657-004 16208-657-004 / Valve Assembly, Solenoid

VALVE ASSY., SOLENOID

- -
27 16209-657-300 16209-657-300 / Screw-Washer (5X10)

- -
28 16220-657-003 16220-657-003 / Valve Assembly, Sub-Solenoid

VALVE ASSY., SUB-SOLENOID

- -
29 16225-657-003 16225-657-003 / Wire Harness, Joint

$8.22 $7.40
30 16230-PA5-015 16230-PA5-015 / Valve, Fuel Magnetic

- -
30 16230-PA5-015 16230-PA5-015 / Valve, Fuel Magnetic

- -
31 90409-657-000 90409-657-000 / Washer, Spring (8MM)

- -
32 93892-04014-08 93892-04014-08 / Screw-Washer (4X14)

$0.72
33 93892-06040-08 93892-06040-08 / Screw-Washer (6X40)

- -
34 94002-08280-0S 94002-08280-0S / Nut, Hex (8MM)

NUT, HEX. (8MM)

- -
34 94002-08000-0S 94002-08000-0S / Nut, Hex (8MM)

NUT, HEX. (8MM)

$0.85
35 94101-08800 94101-08800 / Washer, Plain (8MM)

$1.33
36 06160-657-023 06160-657-023 / Overhaul Kit, Carburetor

- -
36 06161-657-013 06161-657-013 / Gasket Kit, Carburetor On-Car

- -
