TRANSMISSION - AUTOMATIC/AT TRANSMISSION CASE (V6) for 2012 Honda ACCORD COUPE

Select AT TRANSMISSION CASE (V6) Part

2012 Honda ACCORD COUPE

Change vehicle

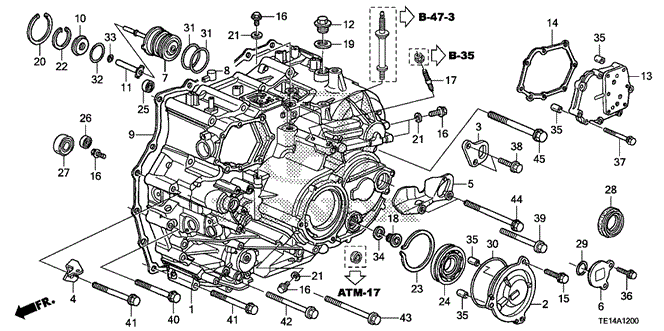

TRANSMISSION - AUTOMATIC/AT TRANSMISSION CASE (V6) for 2012 Honda ACCORD COUPE #1
No. Part # Part # / Description List Price Price
1 21210-R97-000 21210-R97-000 / Case, Transmission

$773.33 $519.68
2 21230-RJF-T00 21230-RJF-T00 / Cap Assembly A, L Side

CAP ASSY. A, L. SIDE

$55.50 $39.29
3 21233-RDK-010 21233-RDK-010 / Hanger B, Transmission

$8.27 $7.44
4 21234-RM2-000 21234-RM2-000 / Stay, Main Ground

$5.42
5 21235-R97-000 21235-R97-000 / Skid, Block

$60.00 $42.48
6 21251-RJB-000 21251-RJB-000 / Cap B, L Side

CAP B, L. SIDE

$11.83 $9.46
7 21260-RJF-T00 21260-RJF-T00 / Cap C, Feed Pipe

$55.50 $39.29
8 21396-P20-000 21396-P20-000 / Cap, Breather

$4.92
9 21811-R36-000 21811-R36-000 / Gasket, Torque Converter Case

$26.10 $18.48
10 22713-PW4-000 22713-PW4-000 / Guide A, Feed Pipe

$5.63
11 22725-RDK-000 22725-RDK-000 / Pipe B, Feed

$9.12 $8.21
12 25614-PK4-000 25614-PK4-000 / Bolt, Filler (Atf)

$13.90 $11.12
13 28450-RJF-T00 28450-RJF-T00 / Cover, Solenoid

$30.83 $21.83
14 28451-RDK-000 28451-RDK-000 / Gasket, Solenoid Cover

$6.93
15 90005-RDK-000 90005-RDK-000 / Bolt, Special (8X21)

$2.63
16 90024-612-000 90024-612-000 / Bolt, Sealing (8MM)

$3.38
17 90041-PA5-000 90041-PA5-000 / Bolt, Stud (6X28)

$2.77
18 90081-PE9-000 90081-PE9-000 / Bolt, Plug (20MM)

$13.90 $11.12
19 90441-PK4-000 90441-PK4-000 / Washer, Sealing (24MM)

$2.19
20 90460-RDK-000 90460-RDK-000 / Shim (0A) (65MM)(0.80)

$9.02 $8.12
20 90477-RDK-010 90477-RDK-010 / Shim Q (65MM) (1.48)

$9.15 $8.24
20 90479-RDK-010 90479-RDK-010 / Shim S (65MM) (1.56)

$9.15 $8.24
20 90472-RDK-010 90472-RDK-010 / Shim L (65MM) (1.28)

$9.15 $8.24
20 90497-RDK-000 90497-RDK-000 / Shim Ak (65MM) (2.28)

$9.15 $8.24
20 90475-RDK-010 90475-RDK-010 / Shim O (65MM) (1.40)

$9.15 $8.24
20 90498-RDK-000 90498-RDK-000 / Shim Al (65MM) (2.32)

$9.15 $8.24
20 90476-RDK-010 90476-RDK-010 / Shim P (65MM) (1.44)

$9.15 $8.24
20 90480-RDK-010 90480-RDK-010 / Shim T (65MM) (1.60)

$9.15 $8.24
20 90469-RDK-010 90469-RDK-010 / Shim I (65MM) (1.16)

$9.15 $8.24
20 90473-RDK-010 90473-RDK-010 / Shim M (65MM) (1.32)

$9.15 $8.24
20 90481-RDK-000 90481-RDK-000 / Shim U (65MM) (1.64)

$9.15 $8.24
20 90484-RDK-000 90484-RDK-000 / Shim X (65MM) (1.76)

$9.15 $8.24
20 90478-RDK-010 90478-RDK-010 / Shim R (65MM) (1.52)

$9.15 $8.24
20 90483-RDK-000 90483-RDK-000 / Shim W (65MM) (1.72)

$9.15 $8.24
20 90470-RDK-010 90470-RDK-010 / Shim J (65MM) (1.20)

$9.15 $8.24
20 90493-RDK-000 90493-RDK-000 / Shim Ag (65MM) (2.12)

$9.15 $8.24
20 90464-RDK-010 90464-RDK-010 / Shim D (65MM) (0.96)

$9.15 $8.24
20 90468-RDK-010 90468-RDK-010 / Shim H (65MM) (1.12)

$9.15 $8.24
20 90494-RDK-000 90494-RDK-000 / Shim Ah (65MM) (2.16)

$9.15 $8.24
20 90499-RDK-000 90499-RDK-000 / Shim AM (65MM) (0.76)

$3.52
20 90496-RDK-000 90496-RDK-000 / Shim Aj (65MM) (2.24)

$9.15 $8.24
20 90495-RDK-000 90495-RDK-000 / Shim Ai (65MM) (2.20)

$9.15 $8.24
20 90487-RDK-000 90487-RDK-000 / Shim AA (65MM) (1.88)

$9.15 $8.24
20 90471-RDK-010 90471-RDK-010 / Shim K (65MM) (1.24)

$9.15 $8.24
20 90463-RDK-010 90463-RDK-010 / Shim C (65MM) (0.92)

$9.15 $8.24
20 90482-RDK-000 90482-RDK-000 / Shim V (65MM) (1.68)

$9.15 $8.24
20 90488-RDK-000 90488-RDK-000 / Shim Ab (65MM) (1.92)

$9.15 $8.24
20 90485-RDK-000 90485-RDK-000 / Shim Y (65MM) (1.80)

$9.15 $8.24
20 90490-RDK-000 90490-RDK-000 / Shim Ad (65MM) (2.00)

$9.15 $8.24
20 90486-RDK-000 90486-RDK-000 / Shim Z (65MM) (1.84)

$9.15 $8.24
20 90489-RDK-000 90489-RDK-000 / Shim AC (65MM) (1.96)

$9.15 $8.24
20 90491-RDK-000 90491-RDK-000 / Shim Ae (65MM) (2.04)

$9.15 $8.24
20 90474-RDK-010 90474-RDK-010 / Shim N (65MM) (1.36)

$9.15 $8.24
20 90492-RDK-000 90492-RDK-000 / Shim Af (65MM) (2.08)

$9.15 $8.24
20 90467-RDK-010 90467-RDK-010 / Shim G (65MM) (1.08)

$9.15 $8.24
20 90462-RDK-010 90462-RDK-010 / Shim B (65MM) (0.88)

$9.15 $8.24
20 90461-RDK-010 90461-RDK-010 / Shim A (65MM) (0.84)

$9.15 $8.24
20 90465-RDK-010 90465-RDK-010 / Shim E (65MM) (1.00)

$9.15 $8.24
20 90466-RDK-010 90466-RDK-010 / Shim F (65MM) (1.04)

$9.15 $8.24
21 90471-580-000 90471-580-000 / Gasket (8MM)

$1.84
22 90602-RDK-000 90602-RDK-000 / Circlip (Inner) (40MM)

$3.42
23 90615-P0Z-000 90615-P0Z-000 / Ring, Snap (82MM)

$5.75
24 91002-RJF-T01 91002-RJF-T01 / Bearing, Ball (29X82X15/19.5)

$61.02 $43.20
25 91006-RJF-005 91006-RJF-005 / Bearing, Ball (9X20X6)

$11.23 $8.98
26 91010-RJF-005 91010-RJF-005 / Bearing, Ball (12X24X6)

$16.55 $13.24
27 91011-RJF-T01 91011-RJF-T01 / Bearing, Ball (20X41X17.5)

$51.58 $36.52
28 91205-P0X-005 91205-P0X-005 / Oil Seal (40X56X9) (Nok)

$15.20 $12.16
29 91302-RDK-003 91302-RDK-003 / O-Ring (28X2.2) (Nok)

$2.75
30 91303-PC9-004 91303-PC9-004 / O-Ring (104X2.2) (Nok)

$5.73
31 91304-RDK-003 91304-RDK-003 / O-Ring (43.5X2.2) (Nok)

$3.42
32 91305-PC9-003 91305-PC9-003 / O-Ring (34X1.9) (Arai)

$2.93
33 91314-PW4-003 91314-PW4-003 / O-Ring (11X1.9) (Nok)

$1.90
34 94109-20000 94109-20000 / Washer, Drain Plug (20MM)

$0.80
35 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.27
36 95701-06020-08 95701-06020-08 / Bolt, Flange (6X20)

$0.25
37 95701-06035-08 95701-06035-08 / Bolt, Flange (6X35)

$1.10
38 95701-08020-08 95701-08020-08 / Bolt, Flange (8X20)

$0.95
39 95701-10070-08 95701-10070-08 / Bolt, Flange (10X70)

$1.93
40 95701-10080-08 95701-10080-08 / Bolt, Flange (10X80)

$1.93
41 95701-10090-08 95701-10090-08 / Bolt, Flange (10X90)

$2.60
42 95701-10100-08 95701-10100-08 / Bolt, Flange (10x100)

$2.60
43 95701-10120-08 95701-10120-08 / Bolt, Flange (10X120)

$2.85
44 95701-10140-08 95701-10140-08 / Bolt, Flange (10X140)

$2.98
45 95701-12110-08 95701-12110-08 / Bolt, Flange (12X110)

$2.95
