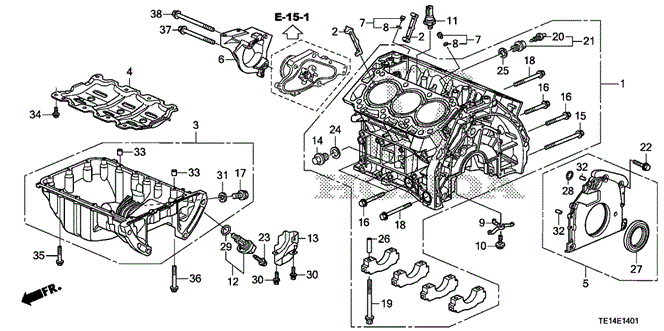

ENGINE/CYLINDER BLOCK - OIL PAN (V6) for 2012 Honda ACCORD COUPE

Select CYLINDER BLOCK - OIL PAN (V6) Part

2012 Honda ACCORD COUPE

Change vehicle

No. Part # Part # / Description List Price Price
1 11000-R70-A01 11000-R70-A01 / Block Assembly, Cylinder

BLOCK ASSY., CYLINDER

$1,244.32 $905.87
2 11103-R70-A01 11103-R70-A01 / Plate, Partition

$8.60 $7.74
3 11200-5MH-A00 11200-5MH-A00 / Pan, Oil

PAN COMP,OIL

$101.90 $72.15
3 11200-5MH-A00 11200-5MH-A00 / Pan, Oil

$101.90 $72.15
4 11221-R70-A10 11221-R70-A10 / Plate, Baffle

$10.67 $8.54
5 11300-R70-A00 11300-R70-A00 / Case Assembly, Oil Seal

CASE ASSY., OIL SEAL

$74.26 $52.58
6 11910-R70-A00 11910-R70-A00 / Bracket, Engine Side Mounting

$44.28 $31.35
7 15140-P8A-A00 15140-P8A-A00 / Orifice Assembly, Oil Control

ORIFICE ASSY., OIL CONTROL

$9.12 $8.21
8 15142-P8A-A00 15142-P8A-A00 / O-Ring (8.8X2.4)

$2.53
9 15280-R70-A00 15280-R70-A00 / Body, Oil Jet

$17.03 $13.62
10 15290-RJA-000 15290-RJA-000 / Bolt, Oil Jet

$21.00 $16.80
11 30530-RNA-A01 30530-RNA-A01 / Sensor, Knock

$28.15 $19.93
12 37500-R40-A01 37500-R40-A01 / Sensor Assembly, Crank

SENSOR ASSY., CRANK

$96.28 $68.17
13 37503-R70-A00 37503-R70-A00 / Cover, Crank Sensor

$20.83 $16.66
14 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$13.52 $10.82
15 90006-P8A-A01 90006-P8A-A01 / Bolt-Washer (10X109)

$7.08 $6.37
16 90008-P8A-A01 90008-P8A-A01 / Bolt-Washer (10X60)

$5.68
17 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

$7.93 $7.14
18 90009-P8A-A01 90009-P8A-A01 / Bolt-Washer (10X80)

$6.30
19 90014-RCA-A01 90014-RCA-A01 / Bolt-Washer (11X105)

$3.13
20 90030-PH7-000 90030-PH7-000 / Bolt, Breathing

$12.87 $10.30
21 90040-P8A-A01 90040-P8A-A01 / Bolt, Drain Plug

$16.22 $12.98
22 90052-PH7-000 90052-PH7-000 / Bolt, Flange (6X22)

$3.27
23 90139-R70-A00 90139-R70-A00 / Bolt, Flange (6X20.5) (Guide)

$0.28
24 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.41
25 90401-P8A-A00 90401-P8A-A00 / Washer, Drain (18MM)

$3.58
26 90715-PH7-000 90715-PH7-000 / Pin, Dowel (13X37)

$3.73
27 91214-R70-A01 91214-R70-A01 / Oil Seal (80X98X8) (Arai)

$13.27 $10.62
27 91214-RCA-A01 91214-RCA-A01 / Oil Seal (80X98X8) (Nok)

$13.27 $10.62
28 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

O-RING (26.2X2.4) (NOK)

$1.30
28 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

$1.30
29 91333-PNA-003 91333-PNA-003 / O-Ring (15X1.9)

$1.97
30 95701-06014-05 95701-06014-05 / Bolt, Flange (6X14)

$0.92
31 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.42
32 94301-06100 94301-06100 / Pin, Dowel (6X10)

$1.30
33 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.27
34 90001-RKG-000 90001-RKG-000 / Bolt-Washer (6X15)

$2.82
35 95701-06032-08 95701-06032-08 / Bolt, Flange (6X32)

$1.10
36 95701-06050-08 95701-06050-08 / Bolt, Flange (6X50)

$1.30
37 90002-R70-A00 90002-R70-A00 / Bolt, Flange (10X85)

$2.12
38 95801-10105-08 95801-10105-08 / Bolt, Flange (10X105)

$2.85
