Engine/Cylinder Block - Oil Pan (L4) for 2010 Honda ACCORD COUPE

Select Cylinder Block - Oil Pan (L4) Part

2010 Honda ACCORD COUPE

Change vehicle

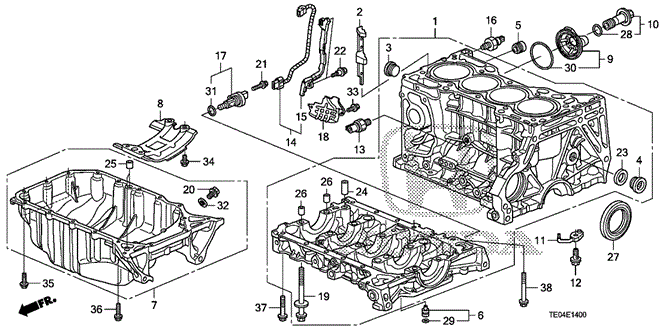

Engine/Cylinder Block - Oil Pan (L4) for 2010 Honda ACCORD COUPE #1
No. Part # Part # / Description List Price Price
1 11000-R40-811 11000-R40-811 / Block Assembly, Cylinder (DOT)

BLOCK ASSY., CYLINDER (DOT)

$1,249.75 $909.82
2 11103-R40-A01 11103-R40-A01 / Plate, Partition

$18.57 $14.86
3 11106-PNA-300 11106-PNA-300 / Bolt, Sealing (20MM)

$5.85
4 11106-PR4-013 11106-PR4-013 / Bolt, Sealing (28MM)

$11.35 $9.08
5 11108-PT0-003 11108-PT0-003 / Bolt, Sealing (18MM)

$7.42 $6.68
6 11135-RAA-A00 11135-RAA-A00 / Orifice Assembly, Block (Lower)

ORIFICE ASSY., BLOCK (LOWER)

$4.53
7 11200-R40-A00 11200-R40-A00 / Pan Assembly, Oil

PAN ASSY., OIL

$174.77 $121.64
8 11221-R40-A00 11221-R40-A00 / Plate A, Baffle

$3.68
9 11500-R40-A00 11500-R40-A00 / Cap, Oil Gallery

$63.80 $45.17
10 11550-RZA-000 11550-RZA-000 / Bolt, Gallery Cap

$45.22 $32.01
11 15280-R40-A01 15280-R40-A01 / Body, Oil Jet

$22.95 $18.36
12 15290-R40-A01 15290-R40-A01 / Bolt, Oil Jet

$23.62 $18.90
13 30530-R40-A01 30530-R40-A01 / Sensor, Knock

$112.02 $79.31
14 32113-R40-A00 32113-R40-A00 / Sub-Wire, Crank Sensor

$11.75 $9.40
15 32129-R40-A00 32129-R40-A00 / Holder, Crank Sub-Wire

$6.15
16 37241-RNA-A01 37241-RNA-A01 / Switch Assembly, Oil Pressure

SWITCH ASSY., OIL PRESSURE

$53.05 $37.56
17 37500-R40-A01 37500-R40-A01 / Sensor Assembly, Crank

SENSOR ASSY., CRANK

$112.55 $79.69
18 37503-R40-A00 37503-R40-A00 / Cover, Crank Sensor

$11.07 $8.86
19 90006-PNA-003 90006-PNA-003 / Bolt-Washer (11X95)

$6.30
20 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

$8.30 $7.47
20 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

BOLT, DRAIN PLUG (14MM)

$8.30 $7.47
21 90028-PNB-003 90028-PNB-003 / Bolt, Special (6X20.5) (Guide)

$2.13
22 90051-RGA-003 90051-RGA-003 / Bolt, Special (6X20.8)

$3.10
23 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.95
24 90703-PE0-000 90703-PE0-000 / Pin, Dowel (18X22)

$6.68
25 90715-PC6-000 90715-PC6-000 / Pin, Dowel (13X20)

$3.90
26 90715-PNA-000 90715-PNA-000 / Pin, Dowel (13X14)

$3.08
27 91214-RZY-A01 91214-RZY-A01 / Oil Seal (80X98X10) (Arai)

$18.23 $14.58
28 91304-RZA-000 91304-RZA-000 / O-Ring (32X2.4)

$2.82
29 91306-PJ4-000 91306-PJ4-000 / O-Ring (6.8X1.9)

$2.12
30 91316-PE7-730 91316-PE7-730 / O-Ring (62.4X3.1)

$4.02
31 91333-PNA-003 91333-PNA-003 / O-Ring (15X1.9)

$2.05
32 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.48
33 95701-06014-05 95701-06014-05 / Bolt, Flange (6X14)

$0.95
34 95701-06018-08 95701-06018-08 / Bolt, Flange (6X18)

$1.10
35 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.50
36 95701-06032-08 95701-06032-08 / Bolt, Flange (6X32)

$1.28
37 95701-08035-08 95701-08035-08 / Bolt, Flange (8X35)

$1.07
38 95701-08050-08 95701-08050-08 / Bolt, Flange (8X50)

$1.68
