Transmission - Automatic/AT Left Side Cover (V6) for 2004 Honda ACCORD COUPE

Select AT Left Side Cover (V6) Part

2004 Honda ACCORD COUPE

Change vehicle

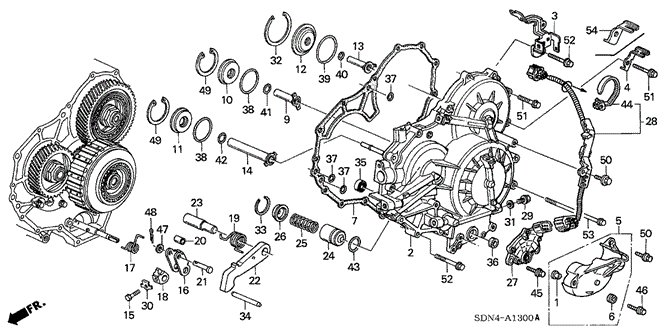

Transmission - Automatic/AT Left Side Cover (V6) for 2004 Honda ACCORD COUPE #1
No. Part # Part # / Description List Price Price
1 17116-PWA-000 17116-PWA-000 / Collar, Engine Cover

$2.38
2 21240-RAY-010 21240-RAY-010 / Cover, L Side

COVER, L. SIDE

$234.43 $163.17
3 21516-RAY-000 21516-RAY-000 / Stay A, Temperature Sensor Harness (Atf)

$13.95 $11.16
5 21720-RAY-000 21720-RAY-000 / Cover, Position Sensor

$30.25 $21.42
6 21724-RAY-000 21724-RAY-000 / Rubber, Position Sensor Cover

$4.78
7 21812-PGH-020 21812-PGH-020 / Gasket, L Side Cover

GASKET, L. SIDE COVER

$13.33 $10.66
9 22710-P7C-000 22710-P7C-000 / Pipe A, Feed

$8.05 $7.25
10 22713-PC9-010 22713-PC9-010 / Guide A, Feed Pipe

$6.13
11 22713-PW4-000 22713-PW4-000 / Guide A, Feed Pipe

$5.68
12 22713-PX4-000 22713-PX4-000 / Guide A, Feed Pipe

$5.68
13 22715-P0Z-000 22715-P0Z-000 / Pipe B, Feed

$9.33 $8.40
14 22725-P6H-000 22725-P6H-000 / Pipe B, Feed

$12.03 $9.62
15 24282-634-000 24282-634-000 / Bolt, Shaft Fork Setting

$3.42
16 24532-PX4-000 24532-PX4-000 / Lever, Parking Brake

$18.88 $15.10
17 24535-P7Z-000 24535-P7Z-000 / Spring, Parking Brake

$4.15
18 24537-PA9-003 24537-PA9-003 / Stopper, Parking Brake (1)

$17.08 $13.66
18 24539-PA9-003 24539-PA9-003 / Stopper, Parking Brake (3)

$17.08 $13.66
18 24538-PA9-003 24538-PA9-003 / Stopper, Parking Brake (2)

$17.08 $13.66
19 24552-P7X-000 24552-P7X-000 / Spring, Parking Pawl

$3.58
20 24553-PN6-000 24553-PN6-000 / Roller, Parking Brake

$6.85
21 24555-PN6-000 24555-PN6-000 / Pin, Roller (6MM)

$6.55
22 24561-P7W-000 24561-P7W-000 / Pawl, Parking Brake

$35.92 $25.43
23 24562-PAX-000 24562-PAX-000 / Shaft, Parking

$15.63 $12.50
24 27576-PAX-000 27576-PAX-000 / Piston, Top Accumulator

$19.92 $15.94
25 27583-P7W-000 27583-P7W-000 / Spring A, Third Accumulator

$7.67 $6.90
26 27591-P7W-000 27591-P7W-000 / Cover, Accumulator (26MM)

$4.20
27 28900-RAY-033 28900-RAY-033 / Sensor, Position

SENSOR ASSY., POSITION

$103.75 $73.46
27 28900-RAY-033 28900-RAY-033 / Sensor, Position

$103.75 $73.46
28 28920-RAY-010 28920-RAY-010 / Harness, Position Sensor

$49.45 $35.01
29 90024-612-000 90024-612-000 / Bolt, Sealing (8MM)

$3.77
30 90433-639-000 90433-639-000 / Washer, Lock (6MM)

$3.17
31 90471-580-000 90471-580-000 / Gasket (8MM)

$1.85
32 90602-PX4-000 90602-PX4-000 / Circlip B (Inner) (47MM)

$2.75
33 90607-P6H-000 90607-P6H-000 / Ring, Snap (26MM)

$2.30
34 90701-639-000 90701-639-000 / Pin, Dowel (8X55)

$5.00
35 91006-P1B-003 91006-P1B-003 / Bearing, Ball (9X20X6)

$17.40 $13.92
36 91201-PA9-004 91201-PA9-004 / Oil Seal (9X18X7) (Arai)

$4.85
37 91301-PC9-003 91301-PC9-003 / O-Ring (7.7X2.3) (Arai)

$1.82
38 91305-PC9-003 91305-PC9-003 / O-Ring (34X1.9) (Arai)

$2.97
39 91305-PX4-003 91305-PX4-003 / O-Ring (40X1.9) (Nok)

$4.53
40 91311-PA9-004 91311-PA9-004 / O-Ring (7.7X1.9) (Nok)

$2.15
41 91314-PC9-004 91314-PC9-004 / O-Ring (8.5X1.9) (Nok)

$2.57
42 91314-PW4-003 91314-PW4-003 / O-Ring (11X1.9) (Nok)

$1.92
43 91331-PC9-003 91331-PC9-003 / O-Ring (21.2X2.4) (Arai)

$2.42
44 91506-P01-003 91506-P01-003 / Clip A, Harness Band (129.4MM)(Dark Gray)

$4.48
45 93403-06025-08 93403-06025-08 / Bolt-Washer (6X25)

$1.45
46 93414-06025-08 93414-06025-08 / Bolt-Washer (6X25)

$0.73
47 94101-06800 94101-06800 / Washer, Plain (6MM)

$0.42
48 94201-16120 94201-16120 / Pin, Split (1.6X12)

$0.50
49 94520-38000 94520-38000 / Circlip (Inner) (38MM)

$1.55
50 95701-06016-08 95701-06016-08 / Bolt, Flange (6X16)

$1.07
51 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.45
52 95701-06040-08 95701-06040-08 / Bolt, Flange (6X40)

$1.23
53 95701-06090-08 95701-06090-08 / Bolt, Flange (6X90)

$1.97
54 21519-RAY-010 21519-RAY-010 / Stay, Harness Holder

$3.72
