Engine/Cylinder Block - Oil Pan (V6) for 2003 Honda ACCORD COUPE

Select Cylinder Block - Oil Pan (V6) Part

2003 Honda ACCORD COUPE

Change vehicle

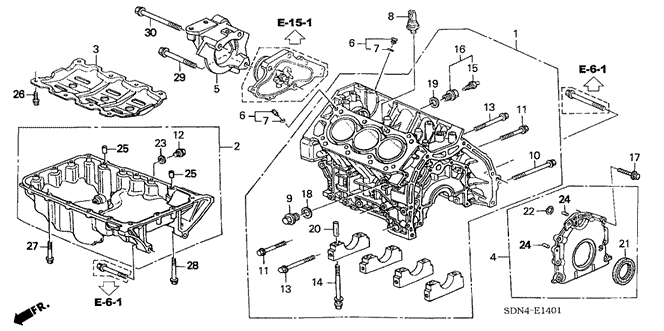

Engine/Cylinder Block - Oil Pan (V6) for 2003 Honda ACCORD COUPE #1
No. Part # Part # / Description List Price Price
1 11000-RCA-810 11000-RCA-810 / Block Assembly, Cylinder (DOT)

BLOCK ASSY., CYLINDER (DOT)

$1,224.23 $891.24
2 11200-RDA-A00 11200-RDA-A00 / Pan, Oil

$167.63 $116.67
3 11221-RYE-A00 11221-RYE-A00 / Plate, Baffle

$29.67 $21.00
4 11300-RCA-A00 11300-RCA-A00 / Case Assembly, Oil Seal

CASE ASSY., OIL SEAL

$52.55 $37.21
5 11910-RCA-A00 11910-RCA-A00 / Bracket, Engine Side Mounting

$59.87 $42.39
6 15140-P8A-A00 15140-P8A-A00 / Orifice Assembly, Oil Control

ORIFICE ASSY., OIL CONTROL

$9.52 $8.57
7 15142-P8A-A00 15142-P8A-A00 / O-Ring (8.8X2.4)

$2.65
8 30530-P8F-A01 30530-P8F-A01 / Sensor Assembly, Knock

SENSOR ASSY., KNOCK

$48.87 $34.60
9 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$15.62 $12.50
10 90006-P8A-A01 90006-P8A-A01 / Bolt-Washer (10X109)

$8.20 $7.38
11 90008-P8A-A01 90008-P8A-A01 / Bolt-Washer (10X60)

$6.57
12 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

BOLT, DRAIN PLUG (14MM)

$8.30 $7.47
12 90009-R70-A00 90009-R70-A00 / Bolt, Plug (14MM)

$8.30 $7.47
13 90009-P8A-A01 90009-P8A-A01 / Bolt-Washer (10X80)

$7.28 $6.55
14 90014-RCA-A01 90014-RCA-A01 / Bolt-Washer (11X105)

$3.62
15 90030-PH7-000 90030-PH7-000 / Bolt, Breathing

$14.87 $11.90
16 90040-P8A-A01 90040-P8A-A01 / Bolt, Drain Plug

$18.73 $14.98
17 90052-PH7-000 90052-PH7-000 / Bolt, Flange (6X22)

$3.78
18 90401-PR4-000 90401-PR4-000 / Washer, Sealing (28MM)

$3.95
19 90401-P8A-A00 90401-P8A-A00 / Washer, Drain (18MM)

$4.15
20 90715-PH7-000 90715-PH7-000 / Pin, Dowel (13X37)

$3.90
21 91214-RCA-A01 91214-RCA-A01 / Oil Seal (80X98X8) (Nok)

$20.37 $16.30
22 91308-P3R-T01 91308-P3R-T01 / O-Ring (26.2X2.4) (Yamada Somboon)

$1.37
23 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.48
24 94301-06100 94301-06100 / Pin, Dowel (6X10)

$1.37
25 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.33
26 95701-06014-08 95701-06014-08 / Bolt, Flange (6X14)

$1.10
27 95701-06032-08 95701-06032-08 / Bolt, Flange (6X32)

$1.28
28 95701-06050-08 95701-06050-08 / Bolt, Flange (6X50)

$1.50
29 95801-10085-08 95801-10085-08 / Bolt, Flange (10X85)

$3.02
30 95801-10105-08 95801-10105-08 / Bolt, Flange (10X105)

$3.30
