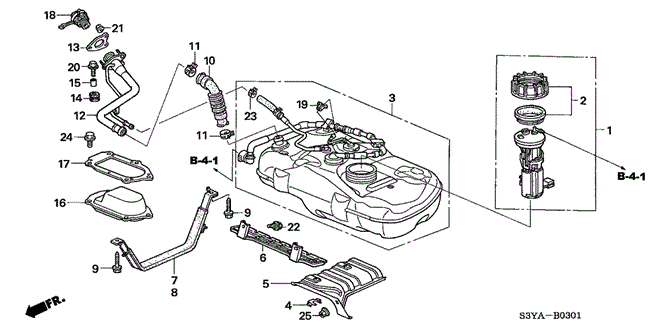

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (2) for 2006 Honda INSIGHT

Select FUEL TANK (2) Part

2006 Honda INSIGHT

Change vehicle

No. Part # Part # / Description List Price Price
1 17045-S3Y-A50 17045-S3Y-A50 / MODULE ASSY., FUEL PUMP

$344.50 $243.91
2 17046-SHJ-A00 17046-SHJ-A00 / NUT & GASKET SET, FUEL LOCK

$57.24 $40.52
3 17500-S3Y-A51 17500-S3Y-A51 / TANK, FUEL

$373.03 $264.11
4 17513-S3Y-003 17513-S3Y-003 / CIRCLIP, PROTECTOR

$3.62
5 17519-S3Y-000 17519-S3Y-000 / PROTECTOR, FUEL TANK

$40.27 $28.51
6 17520-S3Y-A00 17520-S3Y-A00 / REFLECTOR, FUEL TANK

$33.33 $23.60
7 17521-S3Y-000 17521-S3Y-000 / BAND, R. FUEL TANK MOUNTING

$35.80 $25.35
8 17522-S3Y-000 17522-S3Y-000 / BAND, L. FUEL TANK MOUNTING

$35.80 $25.35
9 17525-SM4-000 17525-SM4-000 / BOLT-WASHER (10X35)

$3.32
10 17651-S3Y-A51 17651-S3Y-A51 / TUBE, FILLER NECK

$44.67 $31.62
11 17652-SDA-A31 17652-SDA-A31 / CLIP, FILLER TUBE

$4.08
12 17660-S3Y-A50 17660-S3Y-A50 / PIPE, FUEL FILLER

$110.08 $77.94
13 17662-SS1-010 17662-SS1-010 / GASKET, FUEL FILLER PIPE

$6.23
14 17664-SH4-010 17664-SH4-010 / BUSH, FILLER PIPE MOUNT

$3.73
15 17665-SK7-010 17665-SK7-010 / COLLAR, FILLER PIPE MOUNT

$4.62
16 17667-S3Y-010 17667-S3Y-010 / GROMMET, FUEL FILLER PIPE

$31.03 $21.97
17 17668-S3Y-000 17668-S3Y-000 / HOLDER, FUEL FILLER PIPE GROMMET

$12.99 $10.39
18 17670-SDC-L01 17670-SDC-L01 / CAP, FUEL FILLER

$39.53 $27.99
19 17711-S0X-931 17711-S0X-931 / RETAINER (BLUE GREEN) (TOKAI)

$2.42
20 90011-SK7-010 90011-SK7-010 / BOLT, FILLER PIPE MOUNTING

$2.73
21 90103-SB0-010 90103-SB0-010 / NUT, FLANGE (5MM)

$2.63
22 90671-SB2-003 90671-SB2-003 / BOLT, FR. FENDER

$5.42
23 90700-SDA-003 90700-SDA-003 / CLAMP, FUEL TUBE (D17.0)

$4.08
24 93405-06016-05 93405-06016-05 / BOLT-WASHER (6X16)

$1.08
25 94071-06050 94071-06050 / NUT-WASHER (6MM)

- -
