BODY / AIR CONDITIONING/A/C UNIT (1) for 1992 Honda CIVIC HATCHBACK

Select A/C UNIT (1) Part

1992 Honda CIVIC HATCHBACK

Change vehicle

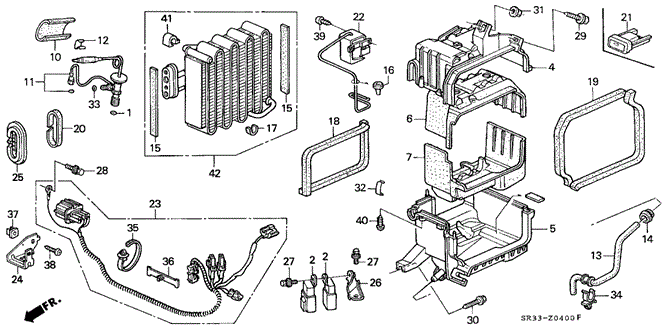

No. Part # Part # / Description List Price Price
NI PH-749910 PH-749910 / O-RING SET

$11.97 $9.58
1 38647-692-660 38647-692-660 / O-RING (1/2")

$1.04
2 39795-SB2-003 39795-SB2-003 / RELAY ASSY., POWER (4P) (RC-2201) (MITSUBA)

$54.33 $38.47
4 80201-SR3-A02 80201-SR3-A02 / CASE, EVAPORATOR (UPPER)

$49.53 $35.07
5 80202-SR3-A00 80202-SR3-A00 / CASE, EVAPORATOR (LOWER)

$50.08 $35.46
6 80205-SR3-A00 80205-SR3-A00 / INSULATOR, EVAPORATOR (UPPER)

$17.87 $14.30
7 80206-SR3-A00 80206-SR3-A00 / INSULATOR, EVAPORATOR (LOWER)

$17.87 $14.30
10 80214-SL5-A01 80214-SL5-A01 / INSULATOR, EXPANSION

$7.67 $6.90
11 80220-SR1-A11 80220-SR1-A11 / VALVE ASSY., EXPANSION

$75.85 $53.70
12 80225-SR3-010 80225-SR3-010 / CLAMP

$6.35
13 80271-SR3-A00 80271-SR3-A00 / HOSE, DRAIN

- -
14 80272-SF4-000 80272-SF4-000 / GROMMET, DRAIN HOSE

$3.25
15 80281-SR1-A10 80281-SR1-A10 / SEAL A

$7.30 $6.57
16 80282-SM4-A00 80282-SM4-A00 / GROMMET, THERMOSTAT

- -
17 80284-SF1-A10 80284-SF1-A10 / SEAL D

$3.32
19 80287-SR3-000 80287-SR3-000 / SEAL, EVAPORATOR (OUTER)

$15.62 $12.50
20 80288-SR3-000 80288-SR3-000 / SEAL, EVAPORATOR JOINT

$8.82 $7.94
21 80411-SR3-013 80411-SR3-013 / KNOB, AIR CONDITIONER SWITCH

$5.67
22 80430-SR3-A01 80430-SR3-A01 / THERMOSTAT, AIR CONDITIONER

$108.42 $76.76
23 80460-SR3-A02 80460-SR3-A02 / WIRE HARNESS, AIR CONDITIONER

- -
24 80463-SR3-A00 80463-SR3-A00 / BRACKET, AIR CONDITIONER WIRE HARNESS

$5.00
25 80464-SR3-000 80464-SR3-000 / GROMMET, AIR CONDITIONER PIPE

$14.63 $11.70
26 80491-SR3-000 80491-SR3-000 / BRACKET, AIR CONDITIONER RELAY

- -
27 90012-PC6-000 90012-PC6-000 / BOLT, SPECIAL (6X12) (+) (DACRO COATING)

$3.32
28 90153-SE0-003 90153-SE0-003 / BOLT, GROUND (6X12)

$0.48
29 90155-SE0-003 90155-SE0-003 / SCREW, TAPPING (6X20)

$2.95
30 90156-SH3-000 90156-SH3-000 / BOLT-WASHER (6X24)

$1.22
31 90222-SB4-000 90222-SB4-000 / NUT-WASHER (6MM)

$0.32
32 90659-692-000 90659-692-000 / CLAMP, CASE

$5.63
33 91301-SM4-A00 91301-SM4-A00 / O-RING (6.8X1.5)

$2.22
34 91546-SR3-003 91546-SR3-003 / CLAMP (18.5)

- -
35 91547-SF4-003 91547-SF4-003 / BAND, WIRE HARNESS (123.5MM) (BLUE)

$4.07
36 91559-SE3-003 91559-SE3-003 / CLIP, WIRE HARNESS (55MM) (WHITE)

$3.12
37 91619-SA5-000 91619-SA5-000 / GROMMET, SCREW (6MM)

$3.12
38 93904-46220 93904-46220 / SCREW, TAPPING (6X16)

$0.75
39 93913-14220 93913-14220 / SCREW, TAPPING (4X12)

$0.58
40 93913-14420 93913-14420 / SCREW, TAPPING (4X16) (PO)

$0.58
41 80217-SH3-000 80217-SH3-000 / SEAL

- -
42 80215-SR3-305 80215-SR3-305 / EVAPORATOR (SAK)

- -
